UL Division 1 Explosion proof LED Inspection Lights

 CES-SC Series

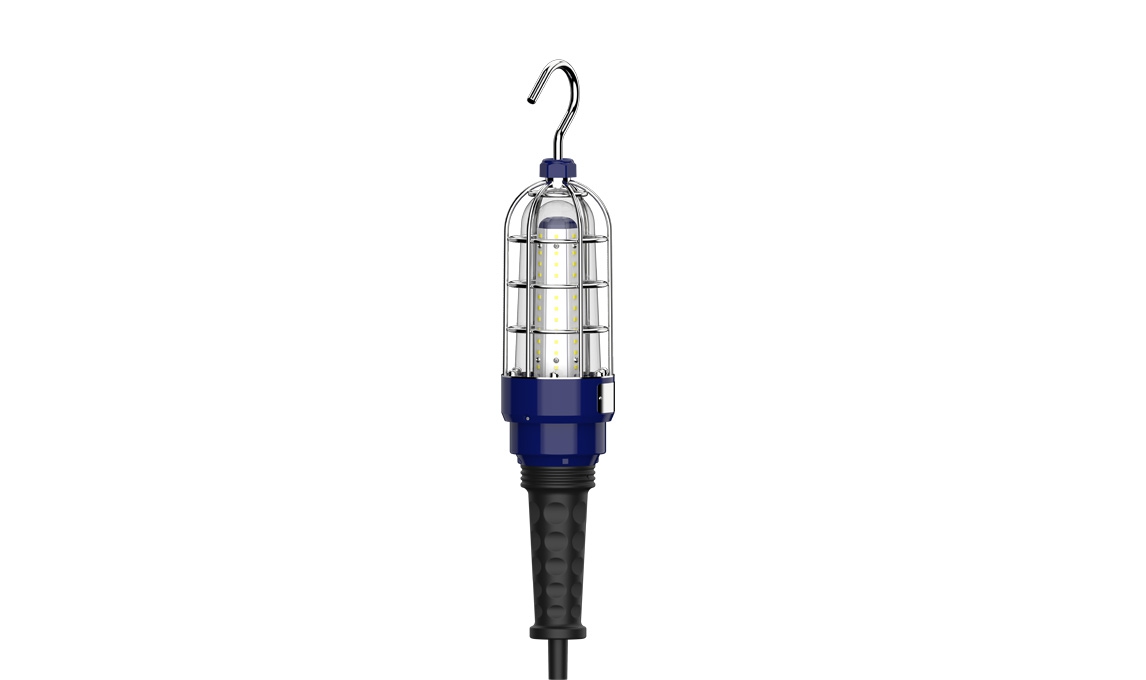

Portable Explosion Proof Hand Lamp
Class I, Division 1, Groups B, C and D Class II, Division 1, Groups E, F and G
T-Class: T6/T80℃
Master Contract NO.: 300982-CSA-CUS
File: E500078-UL-CUL

Hazardous Location LED Hand Light CES-SC

Applications:

CES-SC obained Class 1 Division 1 & 2, Class II Divsion 1 &2 Hazardous Location Applicable certification of North American. This is unique design Division 1 Portable Explosion proof luminaries, light weight and easy take it to any where, you can use it as an explosion-proof hand light, explosion proof led drop light, explision proof work light or explosion proof inspetion light. it is capable of offering portable illumination for hazardous locations and temporary projects, such as quick plant turnarounds, MRO projects, oil fields, marine sites and tank cleaning etc.

  • If you need Explosion Proof LED Luminaires for Zone 1 & 21, please click here: (IECEX / ATEX) Explosion Proof LED Luminaires
  • Features:

    • Industry-leading efficacy: up to 130 LPW;
    • CCT: 3000K/4000K/5000K/6500K;
    • -20°C to +40°C ambient operating temperature
    • 5 Year Warranty
    • Prevent drop damage
    • Swivel hook for hanging and hands free operation
    • Molded rubber protection cable

    Standard Materials:

    • Housing –Aluminum alloy (ADC12);
    • Lens –tempered glass; (10mm thick, withstand impacts more than 7J)

    Certifications and compliances:

    • NEC/CEC:
    • Class I, Division 1, Groups B, C and D
    • Class II, Division 1, Groups E, F and G
    • Class I, Division 2, Groups A, B, C and D
    • Class II, Division 2, Groups F and G
    • Class III
    • T-Class: T6 / T80°C
    • IP66;
    • Damp and wet locations
    • Paint spray rated
    • Certificate:  Master Contract NO: 300982-CSA-CUS; File: E500078-UL-CUL

    Standard :

    US:  UL 844; UL 153;

    Canada: CSA C22.2 No. 137; CSA C22.2 No.250.4;

    Warning

    CUL for Hazloc:

    • SUITABLE FOR WET LOCATIONS;
    • THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING __40__ °C (__104__ °F);
    • FOR SUPPLY CONNECTION, USE WIRES RATED FOR AT LEAST______°C (°F);
    • NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
    • CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;
    • THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
    • “CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.
    • “WARNING –KEEP COVER TIGHT WHILE CIRCUITS ARE ALIVE and GARDER LE COUVERCLE BIEN FERMÉ TANT QUE LES CIRCUITS SONT SOUS TENSION”
    • “CAUTION DO NOT USE IN THE PROXIMITY OF VEHICLES OR EQUIPMENT, WHEN THERE IS A RISK OF FLAMMABLE LIQUIDS COMING INTO CONTACT WITH THE HANDLAMP”
    • “AC ONLY”
    • “DISCONNECT PLUG BEFORE RELAMPING OR SERVICING”

    Technical table:

    Model

    Power

    (W)

    Input voltage: 120Vac;  Frequency: 50/60Hz;

    Output voltage:30-36Vdc

    CCT:3000K/4000K/6500K

    Power factor:0.97

    Output current

    (A)

    Input current

    (A)

    Luminous flux (LM)

    Light efficiency (Lm/W)

    LEDs Chip

    LEDs Type

    (3V,1W)

    Power

    Model

    Weights

    (kg)

    CES-SC30

    30

    0.8A

    0.26

    3000

    100

    72Pcs

    3030

    Unlisted Component (FKSZ3/9) SHENZHEN CESP CO., LTD (E500078)

    cat no. IAE30-220S36

    2.4

    CES-SC20

    20

    0.55A

    0.17

    2000

    100

    72Pcs

    3030

    CES-SC10

    10

    0.25A

    0.09

    1000

    100

    72Pcs

    3030

    Dimensions:

    Figure 1 applies to CES- SC30, CES- SC20, CES- SC10 Hazardous Location LED Lights

    Φx H: Φ101.5 x 517 mm

     class 1 division 1 led hand light
