 CES-EX-LN-02P Series
Explosion Proof LED Linear Luminaires
Class I, Division 2, Groups A, B, C and D
T-Class: T4A/T5/T6
Certificate NO.: E475887-UL-CUL
PC Cover, excellent anti-corrosion performance

Hazardous Location Linear Light LED CES-EX-LN-02P

Applications:

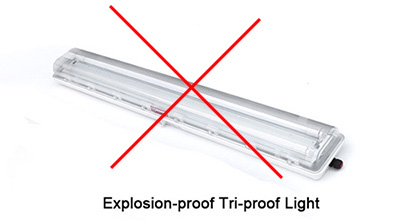

CES-EX-LN-02P design for repalce traditonal explosion proof fluorscent lights, Class I Division 2, Group A, B, C and D, with lumen flux, can applied to wastewater treatment, oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting.

  • If you need Explosion Proof LED Line Luminaires for Zone 1 & 21, please click here: (IECEX / ATEX) Explosion Proof LED Line Luminaires
  • Features:

    • Industry-leading efficacy: up to 140 LPW;
    • CTT: 3000K/4000K/6500K;
    • -40°C to +55°C ambient operating temperature
    • Low profile fixture
    • Wide optics for uniform illumination
    • Fixture warranty
    • Entry Size: 3/4’’-14 NPT or M25 X1.5-6H or M26 X1.5-6H;

    Standard Materials:

    • Housing –Aluminum alloy (ADC12 and 6063);
    • Lens –Polycarbonate (PC);

    Mounting (ordered separately):

    Versatile mounting options:

    • Ceiling mount
    • Wall Mount

    Mounting Angle:0° to ±60°;

    Certifications and compliances:

    • NEC/CEC:
    • Class I, Division 2, Groups A, B, C and D;
    • T-Class: T *;
    • Damp and wet locations
    • Certificate NO.: E475887-UL-CUL

                 Ta

    Model

    -40°C ~ 45°C

    -40°C ~ 50°C

    -40°C ~ 55°C

    CES-EX-LN-02P-75D

    T6

    T5

    T5

    CES-EX-LN-02P-65D

    T6

    T5

    T5

    CES-EX-LN-02P-60D

    T6

    T5

    T5

    CES-EX-LN-02P-50D

    T5

    T4A

    T4A

    CES-EX-LN-02P-40D

    T5

    T4A

    T4A

    CES-EX-LN-02P-50B

    T5

    T4A

    T4A

    CES-EX-LN-02P-40B

    T5

    T4A

    T4A

    CES-EX-LN-02P-30B

    T5

    T4A

    T4A



    Standard :

    US:  UL 844; UL 1598;

    Canada: CSA C22.2 No. 137; CSA C22.2 No. 250.0;

    Warning

    CUL for Hazloc:

    • SUITABLE FOR WET LOCATIONS;
    • THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING __55__ °C (_131 °F);
    • MIN 90°C (194°F) SUPPLY CONDUCTORS;
    • NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
    • CAUTION - TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.;
    • THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
    • CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.



    Parameters of CES-EX-LN-02P Explosion proof LED Lights

    Model

    Power

    (W)

    Input voltage: AC100-240/277V;  Frequency: 50/60Hz;

    CCT:3000K/4000K/6500K

    Power factor:0.97

    Luminous flux (LM)

    Light efficiency (Lm/W)

    LEDs Chip

    LEDs Type

    LED Driver

    Model

    Weights

    (kg)

    Lengths

    (m)

    CES-EX-LN-02P-75D

    75

    9000-10500

    120-140

    288PCS

    3030

    (6V)

    SS-75VA-56HL

    5.5

    1.2

    CES-EX-LN-02P-65D

    65

    7800-9100

    CES-EX-LN-02P-60D

    60

    7200-8400

    CES-EX-LN-02P-50D

    50

    6000-7000

    SS-50VA-56HL

    CES-EX-LN-02P-40D

    40

    4800-5600

    CES-EX-LN-02P-50B

    50

    6000-7000

    144PCS

    SS-50VA-56HL

    3

    0.6

    CES-EX-LN-02P-40B

    40

    4800-5600

    CES-EX-LN-02P-30B

    30

    3600-4200



    Dimensions:

    Figure 1 applies to CES-EX-LN-02P-30B, CES-EX-LN-02P-40B, CES-EX-LN-02P-50B.

    L x W x H:629 mm x 138.3mm x 98.1 mm

    0.6M explosion proof led fluorescent light replacement

    Figure 2 applies to CES-EX-LN-02P-40D, CES-EX-LN-02P-50D, CES-EX-LN-02P-60D, CES-EX-LN-02P-65D, CES-EX-LN-02P-75D.

    L x W x H: 1229 mm x 138.3mm x 98.1 mm

    1.2M explosion proof led fluorescent light replacement
