explosion proof led hand lamp




European and American design style, high quality aluminum die casting, DUPONT powder painting process, round shape design, never fade, anti-cracking. Adopt aerodynamic design, take heat away quickly, keep low temperature for heat sink and LED chip for longer lifespan and higher light efficiency.


SMD3030 led chip, high CRI, light efficiency up to 190-210lm/w, only 50% used for 1W led chip, low light decay and longer lifespan.SOSEN-C series driver, high power factor, high conversion efficiency, THD<15%, Anti-surge voltage 6000V, surge current 65A (test t width=425us at AC230V/50%Ipeak).


  • Power: 100W/150W/200W/240W/300W
  • LED chip:3030
  • Power factor: >0.95
  • Light efficacy: 130lm/w-160lm/w
  • CRI: 80/70
  • Beam Angle:60°/90°/120°
  • CCT: 3000K / 4000K / 5000K / 5700K
  • Input Voltage: AC100-277V / AC200-480V
  • Working Temperature: -20℃-40℃
  • IP Rate:IP65


Versatile mounting options:
  • - Loop hanging installation
  • - Adjustable surface mount installation
  • - Installation Instructions

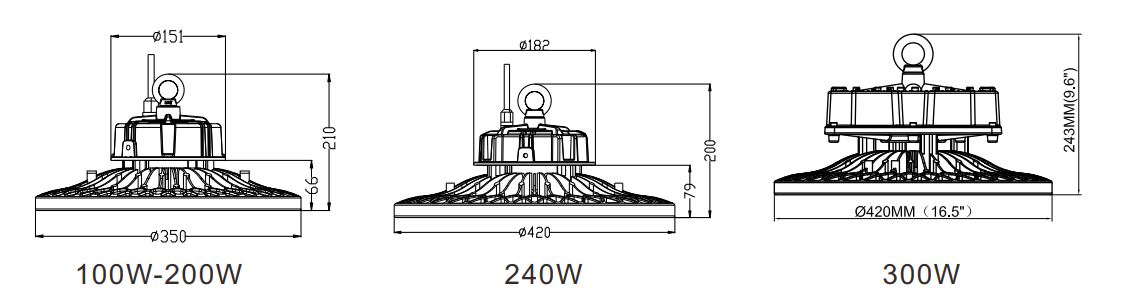

explosion proof led high bay lighting size


lndustry Lighting: production workshop,assembly lineall kinds of processing sites. Large commercial facilities: Supermarkets,shopping centersconvention and exhibition centeraisle, exhibition hall. Public Place: Gymnasium,indoor stadiumparking garage. Logistics Center: such as warehouses,logistics centersand so on

Notes for This UFO LED High Bay Light:

  • Avoid dropping of LED High Bay light, otherwise High Bay light will be damaged;
  • Forbid to install the High Bay light when power on. before power on , please Make sure that wiring is correct once installation finished;
  • Ensure stable installation and correct connection to avoid short -circuit damage to the High Bay light and causing fire hazard;
  • Please do not stare at the High Bay light for a long time when it is working to protect your eyes;
  • Only professional personnel may dismantle and repair.
