Explosion-proof LED floodlights, as one of the LED explosion-proof lighting fixtures, It takes various specific measures to prevent igniting the surrounding explosive mixture, such as explosive gas environment, explosive dust environment, methane gas, etc.
Generally, from the perspective of optical design, the flood light is a point light source that can illuminate uniformly in all directions. Its illumination range can be adjusted arbitrarily, and it is represented as a regular octahedron icon in the scene to illuminate the entire scene.
In the era of low-carbon and environmentally friendly lighting, LED explosion-proof floodlights are gradually replacing traditional explosion-proof lamps and are widely used in different hazardous area lighting places, including drilling platforms, offshore oil platforms, oil refineries, chemical plants, tunnels, Stations, oil depots, ships and other flammable and explosive fields, such as Zone 1 and Zone 2 explosive gas environments, and various indoor and outdoor operations and construction sites are used for fixed lighting.
CESP-J Explosion proof LED flood light is the first explosion-proof lamps of CESP, and it is also the first LED explosion-proof light in China to obtain the North American UL844 Class 1 Division 2 certification, then it obtained European ATEX and international IECEx Zone 1 explosion-proof certification.

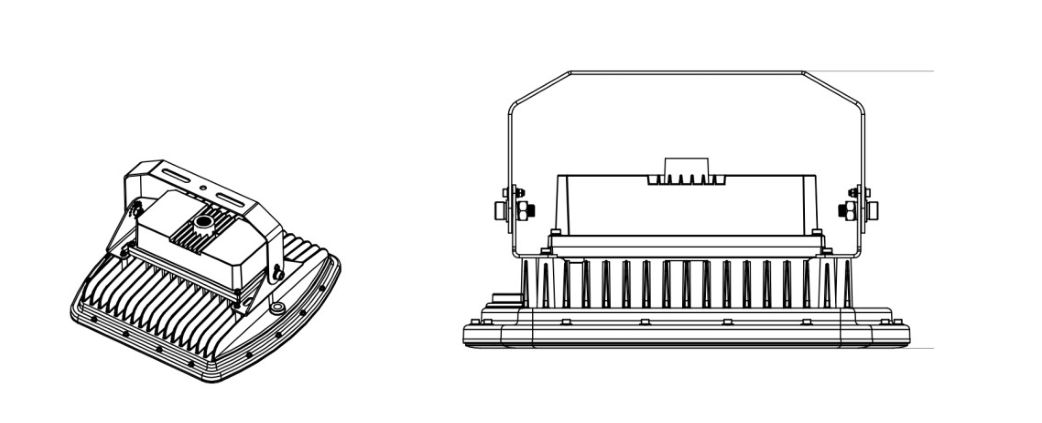

Let’s see the structural design!
Taking into account the particularity of the place where the lamp is used, when designing this explosion-proof LED floodlight, we adopted a special explosion-proof structural design. The power box, radiator and light source cavity are separated to achieve independent design to ensure its excellent heat dissipation. performance. The external wiring is connected by Gland, and 6mm tempered glass is used to make the lampshade, which can resist impact 6J. The shell is designed with die-cast aluminum and powder spraying process, which makes the performance of the finished LED floodlight relatively stable and has a certain explosion-proof Performance, it is very convenient to use, and the safety factor is very high.
In additional, it has another bright spot is marine antiseptic. As we all know, many explosion-proof lights are used in marine lighting, including aircraft carriers, drilling & offshore platforms.
In 2017, due to the needs of the US Navy project, we have carried out special treatment on the lamps to meet the marine anti-corrosion standards, and obtained the North American UL1598A for marine certificate, which was successfully applied to the US Navy aircraft carrier lighting.
Certification Standard
Model No. |
CES-J (Explosion Proof LED Flood Light) |
Explosion System |
Zone、Division |
Hazardous Location |
Zone 1/ Zone 21/ Zone 2/ Zone 22; Class I Division 2; |
Certificate NO. |
ATEX: IEP 19 ATEX 0714- IEP IECEx: IECEx UL 18.0046-UL UL844: E475887-UL-CUL-Class I Division 2 |
Explosion Proof Mark |
ATEX · II 2G Ex eb mb op is IIC T4 Gb; · II 2D Ex op is tb op is IIIC T(95°C )Db; · Ta: -20°C ~ 40°C IECEx: · Ex ec IIC T4 Gc ·Ta:-40°C ~ 40°C UL: ·ClassI, Division2, GroupsA, B, C and D, T5 or T6; Max Temp:40°C |
Specification
Dimension |
200mm x 200mm x 147mm; 300mm x 300mm x 165mm; 400mm x 400mm x 169mm; |
Body Material |
ADC12-- Spray painting |
PC lampshade |
Tempered glass 4mm |
Wiring Terminals |
None |
Wiring Change |
Technicians can change wires by themselves |
Cable entry |
Standard: 3/4’’-14NPT (US standard) M25 X1.5 (European standard); M26 X1.5 can be selected |
Eectric cable |
European regulations: three-core rubber cable, IEC (CE) certification (standard with 0.5m wire); American regulations: STOW, UL certification, 3x18AWG (standard with 0.5m wire); |
Gland |
With ATEX certified gland-European standard; without gland-American standard |
Mounting |
U bracket: galvanized sheet-spray paint (stainless steel optional) |
Nameplate |
European regulations: stainless steel (rivets) American regulations: self-adhesive stickers |
Emergency Power |
Opotional |
Technology Parameter
Model |

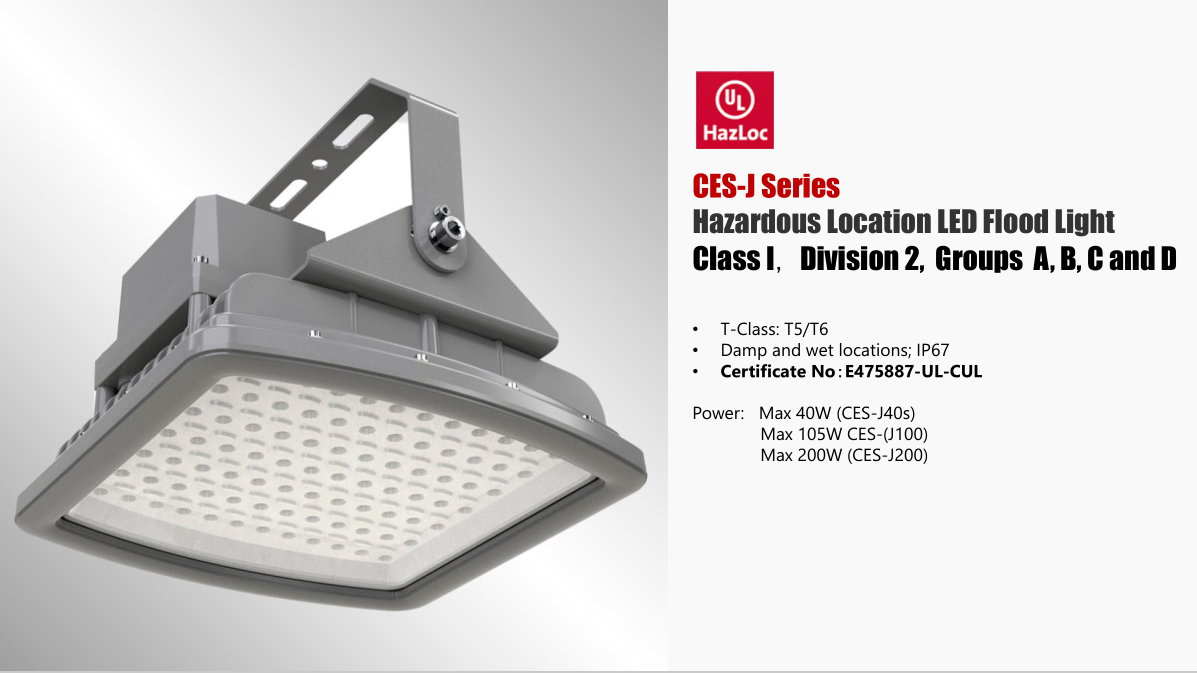

CES-J (Class I Division 2) Hazardous Location LED Flood Light |

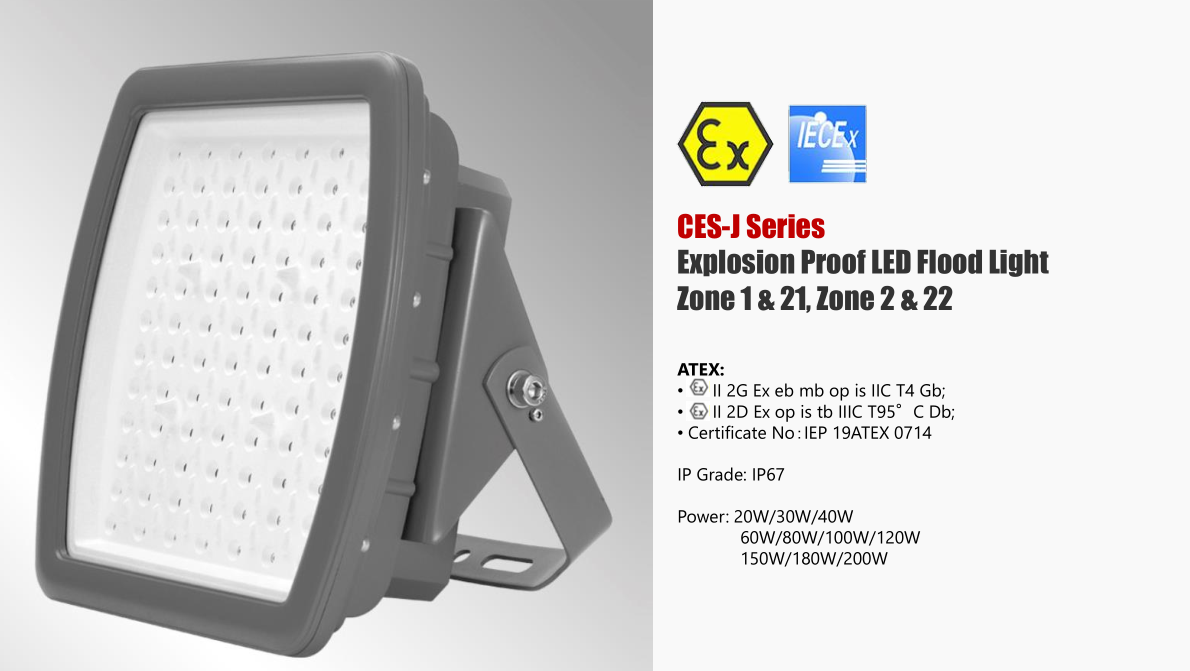

CES-J (ATEX-Zone 1/ Zone 21) Explosion proof LED Flood Light |
Input Voltage |
AC100V-277V; |
AC100V-277V; |
Power |
J40s: 200x 200mm: Max 45W J100: 300x 300mm: Max 105W J200: 400x 400mm: Max 200W |
200x 200mm:20W/30W/40W; 300x 300mm:60W/80W/100W; 400x 400mm:120W/150W/180W/200W |
Beam Angle/Light Efficacy |
200x 200mm:120° 118-122lm/W 300x 300mm:120 ° 120-130lm/W 400x 400mm: 120° 100-115 lm/W |
200x 200mm:90° 90° 115-120 lm/W 300x 300mm:90° 120-130 lm/W 400x 400mm:90° 120-130 lm/W |
CRI/CCT |
70/3000K-6500K |
70/3000K-6500K |
Power Supply |
Meanwell HLG Series (200W XLG240) |
Meanwell HLG Series (200W XLG240) |
Body Color |
Yellow / Grey |
Yellow / Grey |
For specific parameters, you can view the product details page separately, or directly contact This email address is being protected from spambots. You need JavaScript enabled to view it. to obtain the datasheet.

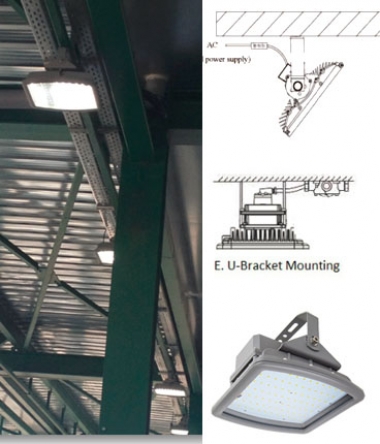

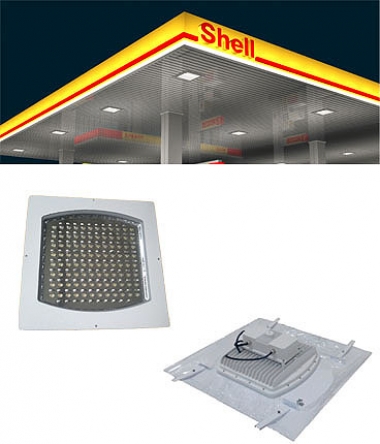

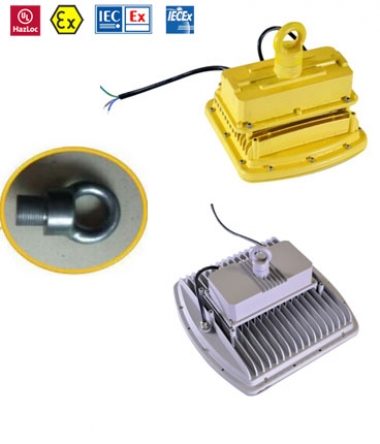

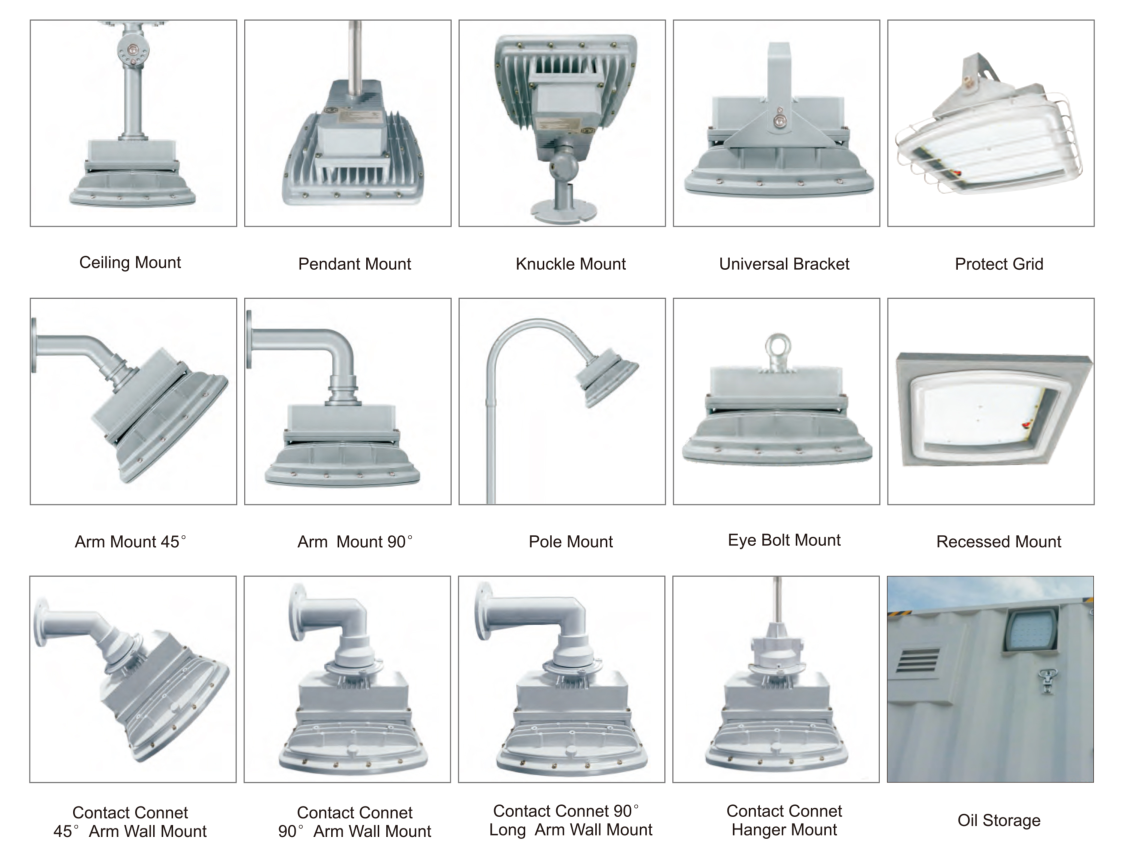

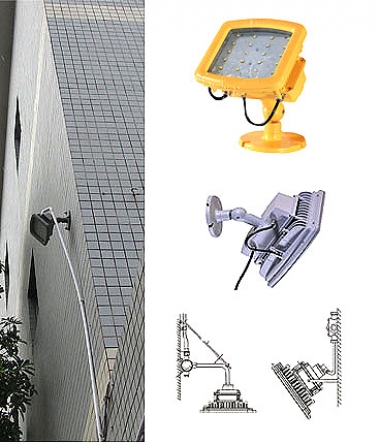

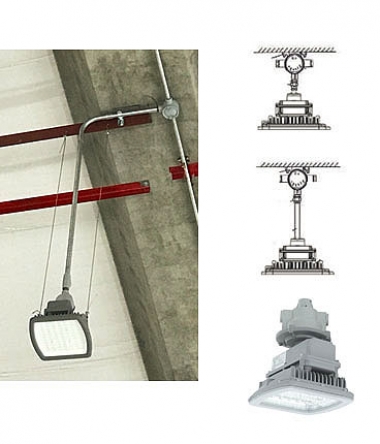

We also provide various installation methods to meet your needs.
About the extension of this LED explosion-proof flood light.
1. Emergency function
The product can increase the emergency function, which can be realized by adding an emergency power box.
Emergency specifications: 12W 1.5 hours/3 hours;
(Note: CES-J120, an emergency can be added for 120W or less, and 100W or less usually. Special plans for high-power lights emergency. Contact us for a plan)
2. Double lamps
High-power lighting meets the needs of higher lighting scenes and can be assembled and produced.
Double lamps have passed the UL 3G vibration test. Choose the corresponding U bracket according to the customer's demand environment.

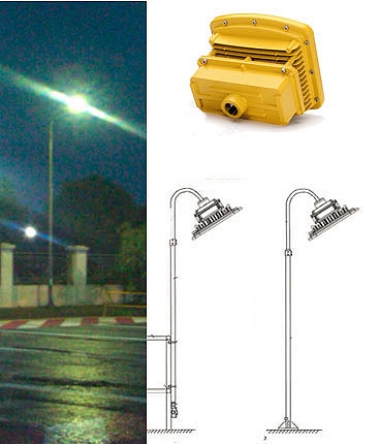

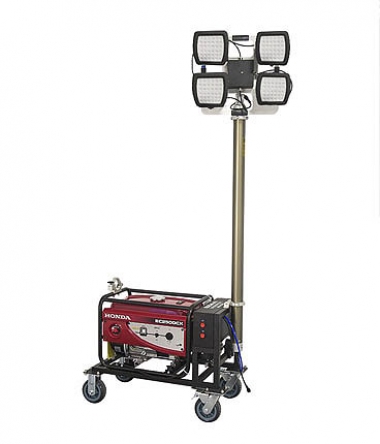

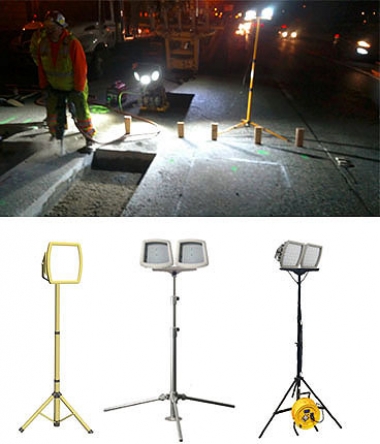

3. Mobile bracket lighting for hazardous location
By connecting with the mobile bracket, a mobile lighting fixture is formed, it can be connected to battery equipment or directly connected to the mains, and the corresponding power supply can be selected according to your requirements.
