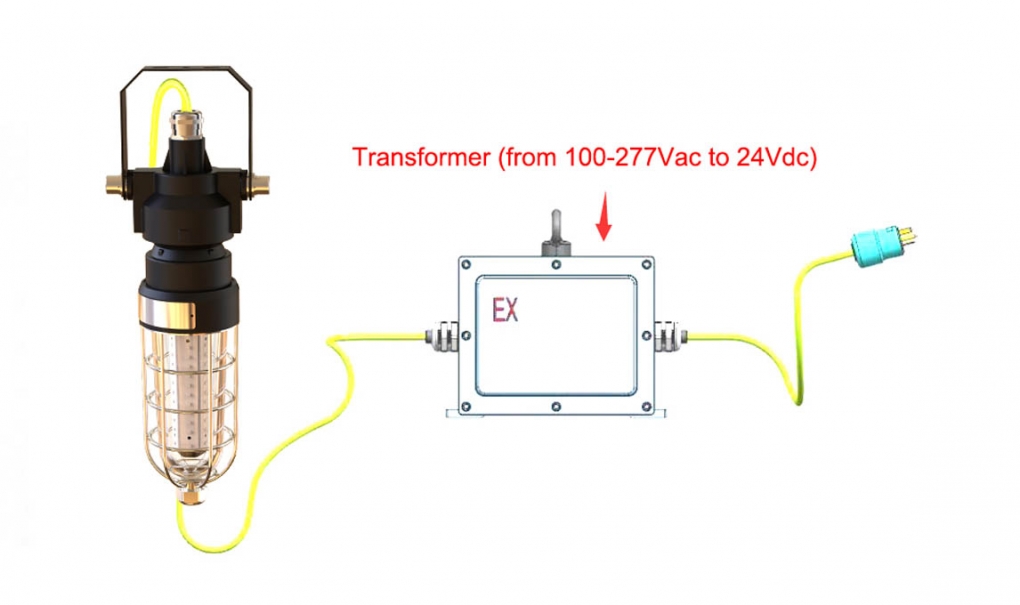

This Drop Light is 360 beam angle, comes complete with 10 meters (according to your requirement can be more longer) of explosion proof cord and an inline transformer that steps down 220V AC to 24V AC or DC for powering the lamp. The hand lamp is designed to provide an effective low voltage lighting solution for operators requiring a versatile source of illumination.
10W, 20W, 30W power optional, ideal for general work task lighting in hazardous locations requiring explosion proof protection.
*PLEASE NOTE: THE TRANSFORMER MUST BE LOCATED OUTSIDE THE HAZARDOUS LOCATION*
Contact us ask for detail “Layout Diagram” will be more clear: This email address is being protected from spambots. You need JavaScript enabled to view it.
Features
- Industry-leading efficacy: up to 130lm/W±5
- -40°C to +50°CCAmbient operating temperature
- Swivel hook for hanging and hands free operation
- Prevent drop damage
- 5 years warranty
- Housing –Aluminum alloy (ADC12 )
- Lens – tempered glass (10mm)
- Beam angle:360°
Parameters
- Power: 10W / 20W / 30W
- Input voltage AC100V-277V; Frequency: 50/60Hz;
- Output voltage: DC24V;
- Lumen flux: 1300LM/2600LM/3900LM
- CCT: 6500K (Optional)
- LEDs: 3030
- Beam angle: 180°
- LED Driver: High Efficiency LED Driver
- Entry Size: M20X1.5
- Dimension: Φ101.5 x 516.5 mm
- Weight: 2.4KG
