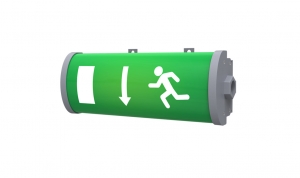

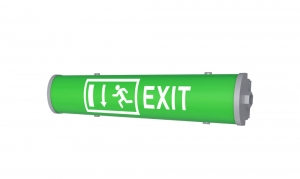

CES-EX-LN-02P-E series 2ft length explosion proof class 1 division 2 exit sign with an backup Li-ion battery that provides 180 mins (3 hours) operation, output 1440 lumen flux.

This explosion proof led exit sign, can used for the hazard location of Class 1 Div 2 Groups A, B, C and D. For design and structure, it made of the die-cast aluminum and the PC cover. Good heat, and 6J impact resistance.

Remark: if you need IECEx and ATEx certified, please visit to 1ft / 2ft emergency epxlosion proof exit sign of Zone 1.

ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-18-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-18-2014; IEC 60079-31-2013;

• CUL for Hazloc:

  • SUITABLE FOR WET LOCATIONS;
  • THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING __55__ °C (_131 °F);
  • MIN 90°C (194°F) SUPPLY CONDUCTORS;
  • NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
  • CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;
  • THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
  • “CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.

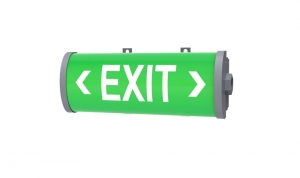

This 0.6 meters Explosion Proof emergency lighting is designed as the exit sign, it is available as an AC (100V - 277V) or DC 24V version, but it is available with a self-contained battery, no less than 90 min or 180 min backup for emergency use.

This Explosion Proof emergency lighting is designed as the exit sign, it is available as an AC (100V - 277V) or DC 24V version, but it is available with a self-contained battery, no less than 90 min or 180 min back up for emergency use.

Applications: In harsh and hazardous environments where illuminated exit signs are required.

This Explosion Proof emergency lighting is designed for Zone 1, Zone 21 hazardous locations as the exit sign, it is available as an AC (100V - 277V) version.

Applications: In harsh and hazardous environments where illuminated exit signs are required.

ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-18-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-18-2014; IEC 60079-31-2013;

IECEx & ATEX :

• “CAUTION-USEFASTENER WITH YIELD STRESS ≥ 640 MPa”；
• “WARNING – DO NOT OPEN WHEN ENERGIZED”；
• “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
• “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”；
• " WARNING - DETAILED TEMPERATURE CLASS - SEE INSTRUCTIONS”；
• “THE FLAMPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED”;
• End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose；
• External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG；
• Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 130℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 83.6℃ and cable entry point is 69.4℃.
