CESP Zone 1 Zone 2 hazardous location LED lights are in accordance with International Protection Techniques (Equipment Protection Levels), including IEC/EN 60079-0 (General Requirement), IEC/EN 60079-1 (Flameproof Enclosure), IEC/EN 60079-7 (Increased Safety), IEC/EN 60079-11 (Intrinsic Safety), IEC/EN 60079-15 (Type of Protection), IEC/EN 60079-18, IEC/EN 60079-28, IEC/EN 60079-31. If you are not sure about the Classified of your lighting application environment, please contact our technical department for the solution.
For Zone 1 Zone 2, Zone 21 Zone 22 hazardous area led lighting, 20W - 200W, 130lm/W,aluminum alloy + 8mm tempered glass, multi-installation for different projects, such as light tower, canopy light, marine grade.
Flameproof enclosure, Ex db op is IIC T6 Gb， Zone 1 & Zone 21 with explosive gas atmosphere, Zone 21 and Zone22 with explosive dust atmosphere, 10mm temered glass, 7J impact resistance，up to 26000lm.
Flameproof enclosure, Ex db op is IIC T6 Gb, IP68 protection grade, tempered glass 10mm, withstand impacts up to 10J, 2 foot and 4 foot Length, 50Watt- 240Watt, 130lm/W light efficacy.
Zone 1 & Zone 21, 1ft, 2ft, 3ft, 4ft length can be selected, replace the traditional explosion-proof three-proof lamp, explosion-proof fluorescent tube, anti-corrosion, anti-glare, anti-drop, competitive price.
Flameproof LED hand lamp for Zone 1 & Zone 21 hazardous areas, 10mm tempered glass, pass the multi-angle drop test, 10W, 20W, 30W Power, can be connected to the cable, emergency power box.
The CES-EX-SF series explosion-proof ceiling lamp has a strong shell, with features such as impact resistance, vibration resistance, and corrosion resistance. It can be used in hazardous environments of Zone 1&21, Zone 2&22.
CES-EX-JX Series is your go-to solution for illuminating hazardous Zone 1 and Zone 21 areas. With ATEX approval, these Explosion-proof LED Flood Lights offer unbeatable safety standards.
Discover the pinnacle of safety and illumination with our CES-EX-GBX Series Explosion-proof LED High Bay Lights. Designed for hazardous Zone 1 and Zone 21 areas, these lights boast ATEX approval, ensuring the highest safety standards.
GB-02 explosion-proof lights are made of alloy aluminum and tempered glass, with shock resistance and anti-vibration performance. The luminaires have passed the ATEX IECEx standards test, from 30W to 80W for hazardous area lighting.
LN-02 explosion-proof lights obtained an IECEx ATEX certificate, it's safe for the Zone 1 and Zone 2 hazardous locations. The copper-free aluminum alloy body is powder-coated to increase durability and beautiful appearance, are able to withstand violent shaking and shock resistance.
an innovative line of LED hazardous area lighting products, specifically designed for use in potentially explosive atmospheres (Zone 1/21 & 2/22) within harsh industrial settings such as coal mines and oil & gas facilities.
Explosion-proof safety exit lamps are for personnel evacuation, and fire operations to provide lighting fire emergency lamps! It usually uses an external power supply, when the power automatically switches to the battery power state!
Tuesday, 24 May 2022 09:18
Explosion Proof Control Station, Explosion Proof Control Cabinets, Explosion Proof Panels
Description
• The housing is made of aluminum alloy die-casting, 304 stainless steel plate and carbon steel plate welding, electrostatic spraying or maintain stainless steel color.
• Explosion-proof types include flameproof type, increased safety type and compound type.
• With good dust-proof and waterproof function.
• With overload, short circuit protection function.
• The leakage protection function can be increased.
• Surge protection can be added.
• Inlet direction: the general direction is the next in and out, but also left in and right out, in all directions.
• Installation modes: vertical, hanging and mobile.
• Steel pipe or cable wiring.
Combination: This explosion proof control station includes explosion-proof electric control box unit (fixed size) + increased safety junction box unit (fixed size). The product can be composed of 1 or more explosion-proof electric control box units (up to 6) + 1 or more increased safety junction box units (up to 6). Explosion-proof control panel components such as buttons and rotary switches, as well as observation windows, and cable entry devices can also be installed on the box. As shown below:

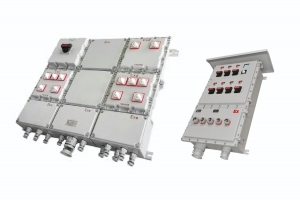

Product show
(* Send your requirement to us if you can not find your suitable products)
Range of application
●Suitable for explosive gas environment zone 1 ,zone 2;
●Applicable to combustible dust environment zone 21,zone 22;
●Suitable for IIA, IIB, II C explosive environment;
●Temperature classification:T1~T6
●Widely used in petroleum, chemical, metallurgy, medicine and military industry and other flammable and explosive gas environment and combustible dust places.
Technical parameter
●Explosion mark: Ex db eb IIB T4/T5/T6 Gb/ Ex tb IC T80°C /95°C/130°C Db
●Box material: Q235 steel;
●Enviroment temperature: -40°C~50°C
●Input voltage:≤AC480V;
●The maximum working current of the main circuit is 630A;
●Branch current: 1/2/3/6/10/20/25/32/40/50/63/100/125/225/250/400A
●Protection grade: IP66;
●Inlet specifications: G1/2~G4; M20~M90;
●Cable diameter: 中6~80mm
●Explosion-proof components such as signal lights, buttons, rotary switches and terminals have IECEX and ATEX certificates;
Selection
Published in
Explosion-Proof Control Station
