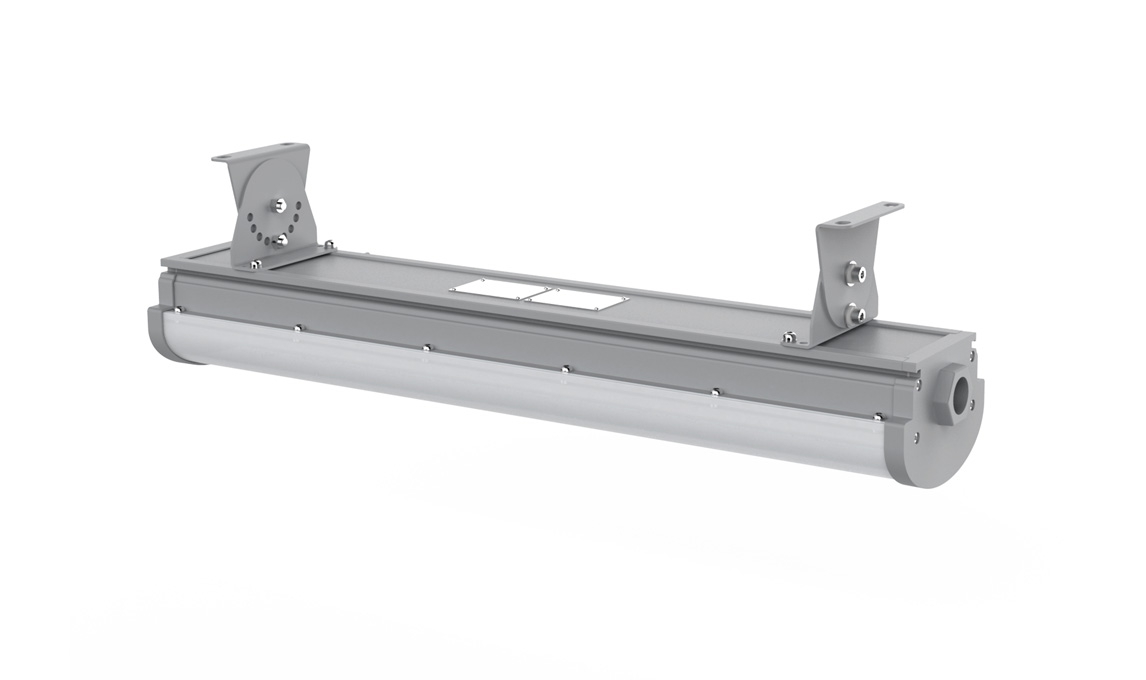

Explosion Proof Fluorescent Light Replacement for Hazardous Location Class 1 Division 2 - 2ft - Pendant Mount



Applications:

  • Wastewater treatment, oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting.



CUL for Hazloc:

  • SUITABLE FOR WET LOCATIONS;
  • THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING __55__ °C (_131 °F);
  • MIN 90°C (194°F) SUPPLY CONDUCTORS;
  • NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
  • CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;
  • THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
  • CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.

Features

  • Industry-leading efficacy: up to 110 - 130lm/W
  • -40°C to + 50°C Ambient operating temperature
  • Mounting: Pendant
  • 5 years warranty
  • Entry Size: NPT 3/4”-14
  • Housing –Aluminum alloy (ADC12 and 6063 )
  • Lens – Polycarbonate (PC)
  • Beam angle:120°

Parameters

  • Power: 30W / 40W / 50W
  • Input voltage: AC100-240/277V, 50/60Hz
  • Power factor: 0.97
  • Lumen flux: 2600LM / 4800LM / 6000LM
  • CCT: 2700K - 6500K (Optional)
  • LEDs: 3030 (6V)
  • LED Driver: high Efficiency LED Driver
  • Dimension: 629 mm x 125mm x 88.7 mm
  • Weight: 3.0KG

Certificate & Standard

Have certified CES-EX-LN-02P fixtures with the North American UL844 standards for hazardous location and environments.

NEC/CEC:

  • Class I, Division 2, Groups A, B, C and D
  • T-Class: T4A / T5
  • Damp and wet locations
  • Certify No:E475887

Standard:

  • US: UL 844; UL 1598;
  • Canada: CSA C22.2 No. 137; CSA C22.2 No. 250.0

Special order

  • Special Orders- Requirements
    Contact us for special requirements
