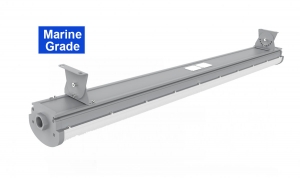

Explosion Proof LED Linear Light - ATEX IECEx Zone 1 Zone 2 - 480W 600W

Applications

Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.

Standard :
ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-31-2013;

Warning：

IECEx& ATEX :

• “WARNING – DO NOT OPEN WHEN ENERGIZED”；
• “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
• “WARNING – Potential Electrostatic Charging Hazard –Please wipe with a damp cloth when cleaning”;
• End user shall use certified cable gland suitable type of protection for final installation purpose；
• External earthing wire shall be connected when used and the cross-sectional area shall be more than 4mm²or 10AWG；
• Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 165℃ for T3. Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. For CES-EX-LN-02-80、CES-EX-LN-02-100、CES-EX-LN-02-120、CES-EX-LN-02-150, the branch point is 78.4℃ and cable entry point is 66.8℃

Explosion Proof LED Linear Light - ATEX IECEx Zone 1 Zone 2 - 360W 400W

Applications

Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.

Standard :
ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-31-2013;

Warning：

IECEx& ATEX :

• “WARNING – DO NOT OPEN WHEN ENERGIZED”；
• “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
• “WARNING – Potential Electrostatic Charging Hazard –Please wipe with a damp cloth when cleaning”;
• End user shall use certified cable gland suitable type of protection for final installation purpose；
• External earthing wire shall be connected when used and the cross-sectional area shall be more than 4mm²or 10AWG；
• Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 165℃ for T3. Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. For CES-EX-LN-02-80、CES-EX-LN-02-100、CES-EX-LN-02-120、CES-EX-LN-02-150, the branch point is 78.4℃ and cable entry point is 66.8℃

Explosion Proof LED Linear Light - ATEX IECEx Zone 1 Zone 2 - 200W 240W 300W

Applications

Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.

Standard :
ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-31-2013;

Warning：

IECEx& ATEX :

• “WARNING – DO NOT OPEN WHEN ENERGIZED”；
• “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
• “WARNING – Potential Electrostatic Charging Hazard –Please wipe with a damp cloth when cleaning”;
• End user shall use certified cable gland suitable type of protection for final installation purpose；
• External earthing wire shall be connected when used and the cross-sectional area shall be more than 4mm²or 10AWG；
• Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 165℃ for T3. Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. For CES-EX-LN-02-80、CES-EX-LN-02-100、CES-EX-LN-02-120、CES-EX-LN-02-150, the branch point is 78.4℃ and cable entry point is 66.8℃

Explosion Proof LED Linear Light - ATEX IECEx Zone 1 Zone 2 - 80W 100W 120W 150W

Applications

Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.

Standard :
ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-31-2013;

Warning：

IECEx& ATEX :

• “WARNING – DO NOT OPEN WHEN ENERGIZED”；
• “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
• “WARNING – Potential Electrostatic Charging Hazard –Please wipe with a damp cloth when cleaning”;
• End user shall use certified cable gland suitable type of protection for final installation purpose；
• External earthing wire shall be connected when used and the cross-sectional area shall be more than 4mm²or 10AWG；
• Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 165℃ for T3. Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. For CES-EX-LN-02-80、CES-EX-LN-02-100、CES-EX-LN-02-120、CES-EX-LN-02-150, the branch point is 78.4℃ and cable entry point is 66.8℃

Explosion Proof LED Linear Light - ATEX IECEx Zone 1 Zone 2 - 40W 50W 60W

Applications

Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.

Standard :
ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-31-2013;

Warning：

IECEx& ATEX :

• “WARNING – DO NOT OPEN WHEN ENERGIZED”；
• “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
• “WARNING – Potential Electrostatic Charging Hazard –Please wipe with a damp cloth when cleaning”;
• End user shall use certified cable gland suitable type of protection for final installation purpose；
• External earthing wire shall be connected when used and the cross-sectional area shall be more than 4mm²or 10AWG；
• Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 165℃ for T3. Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. For CES-EX-LN-02-40、CES-EX-LN-02-50、CES-EX-LN-02-60, the branch point is 61.8℃ and cable entry point is 57.5℃.

Zone 21 Explosion Proof LED Light  - ATEX IECEx - 30W 40W

Applications

Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall, and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.

Standard :
ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-31-2013;

Warning：

IECEx& ATEX :

• “WARNING – DO NOT OPEN WHEN ENERGIZED”；
• “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
• “WARNING – Potential Electrostatic Charging Hazard –Please wipe with a damp cloth when cleaning”;
• End user shall use a certified cable gland suitable type of protection for final installation purpose；
• External earthing wire shall be connected when used and the cross-sectional area shall be more than 4mm² or 10AWG；
• Under rating conditions, the maximum temperature on the luminaire’s shell shall not be higher than 130℃ for T4. Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. For CES-EX-GB-02-30、CES-EX-GB-02-40，The branch point is 57.3℃ and the cable entry point is 52.3℃.

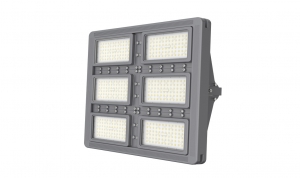

Zone 21 Explosion Proof LED Light  - ATEX IECEx - 60W 80W

Applications

Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall, and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.

Standard :
ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-31-2013;

Warning：

IECEx& ATEX :

• “WARNING – DO NOT OPEN WHEN ENERGIZED”；
• “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
• “WARNING – Potential Electrostatic Charging Hazard –Please wipe with a damp cloth when cleaning”;
• End user shall use certified cable gland suitable type of protection for final installation purpose；
• External earthing wire shall be connected when used and the cross-sectional area shall be more than 4mm² or 10AWG；
• Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 130℃ for T4. Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. For CES-EX-GB-02-60、CES-EX-GB-02-80，The branch point is 58.2℃ and cable entry point is 52.6℃；

CES-EX-LN-02P-E series 2ft length explosion proof class 1 division 2 exit sign with an backup Li-ion battery that provides 180 mins (3 hours) operation, output 1440 lumen flux.

This explosion proof led exit sign, can used for the hazard location of Class 1 Div 2 Groups A, B, C and D. For design and structure, it made of the die-cast aluminum and the PC cover. Good heat, and 6J impact resistance.

Remark: if you need IECEx and ATEx certified, please visit to 1ft / 2ft emergency epxlosion proof exit sign of Zone 1.

ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-18-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-18-2014; IEC 60079-31-2013;

• CUL for Hazloc:

  • SUITABLE FOR WET LOCATIONS;
  • THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING __55__ °C (_131 °F);
  • MIN 90°C (194°F) SUPPLY CONDUCTORS;
  • NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
  • CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;
  • THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
  • “CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.

This 0.6 meters Explosion Proof emergency lighting is designed as the exit sign, it is available as an AC (100V - 277V) or DC 24V version, but it is available with a self-contained battery, no less than 90 min or 180 min backup for emergency use.

This Explosion Proof emergency lighting is designed as the exit sign, it is available as an AC (100V - 277V) or DC 24V version, but it is available with a self-contained battery, no less than 90 min or 180 min back up for emergency use.

Applications: In harsh and hazardous environments where illuminated exit signs are required.
