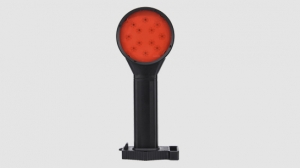

Portable Explosion-proof LED Work Light

Item NO.: CES-EX-FL-4830

• Superb Energy Efficiency： Adopting high-energy memoryless lithium battery, which has the advantages of large capacity, long service life, charging flexibility, low self-discharge rate, and is economically and environmentally friendly.
• Adaptability: It adopts high intensity spotlight, ultra-high brightness LED light source, which can send warning signals or indicate locations in two opposite directions at the same time. The luminous surface is 110mm extra large. The maximum visible distance in one direction is up to 1500m. The luminous area radiates light evenly, provides good visibility under rainy and foggy conditions.
• Waterproofing and fall resistance: The casing is made of high hardness tempered glass lens and high-strength alloy. It is not easy to scratch and has high wear resistance. It can withstand strong collision and impact, has good sealing and strong waterproof ability, and can work normally in various outdoor harsh environments and climate conditions.
• Intelligent control: There are two working modes: strobe and continuous light which can be switched at will via an intelligent switch.
• Light and durable: It is portable, and can be attached to the surface of steel parts via magnetic attraction or hung on other objects. It can be extend or retracted on demand. Convenient to carry and easy to operate.
• Other configurations: Red, yellow, green light sources can be selected on according to actual needs.

Operation Instructions

1.Each short press of the switch button, the brightness of the flashlight will cycle in the following sequence "working mode - strong light mode - flashing mode - off" .
2. Before use, charge the charger of this product. While charging, the indicator light is red. When fully charged, the indicator light turns green. The charger has a built-in charging protection device. If the charger is connected to the power supply and not charging, the indicator light will be shown as green.

The lamp is equipped with 4 power indication lights to help users identify remaining power at any time. The stages of remaining power are as follows: 100%~75% ●●●● 75% ~50% ●●● 50%~25% ●● 25%~10% ● When the power falls below 10%, one of the four indication lights will flash continuously for 3 times, indicating imminent power outage, the flashlight will become dimmer or unadjustable. At time of this, batteries should be replaced or recharged immediately.

Special Note

When the product is unused for more than 3 months, battery maintenance will be required. To do this, first discharge the battery completely, then recharge it to its full capacity.

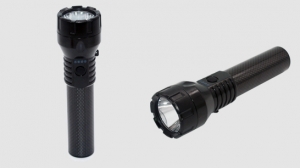

LED Intrinsically Safe Flashlight

Item NO.: CES-EX-FL-7520

Features:

• Superb Energy Efficiency： LED light source adopting world famous brand, high lumen efficiency, high CRI, low energy consumption, extra-long service life, maintenance free results in no further operation costs.
• Economically & Environmentally Friendly: Dual protection high-energy memoryless lithium battery has the advantages of large capacity, long service life, high number of rechargeable times, low self-discharge rate, economically and environmentally friendly, and can prevent instances of overcharge, over discharge and short circuit
• There are three working modes: strong light, working light and stroboscopic. The switch is controlled by intelligent chip. It has the functions of low-power warning and automatic low-power protection. The strong and weak light can be converted at will; The intelligent charger has over charge, short circuit protection and charging display device, which can extend the service life of lamps and lanterns.
• Power level detection: Humanized four stage power indication (through 4 mini light grids) and low voltage warning function design, which enables power level detection at any time; when the power is insufficient, the last light bead will flash to prompt charging.
• Waterproofing and fall resistance: The casing is made of imported high hardness carbon fiber composites to ensure that the product can withstand strong collision and impact, high and low temperature, and is dustproof and anti-corrosion. It is suitable for use in extreme environments and climate conditions.
• Light and durable: Small volume, light weight, exquisite structure, light and beautiful; It can be carried by hand, strap, hanging and other ways to meet various work needs.

Operation Instructions for F-7520 LED Intrinsically Safe Flashlight

1. Each short press of the switch button, the brightness of the flashlight will cycle in the following sequence "working mode - strong light mode - off"; under any of these modes, 3 ~ 5 seconds of long press on the button will change the lamp into the flashing mode.
2. Both ends of the battery are internal positive and external negative. The lamps placed in any direction can be used normally.
3. The led intrinsically safe flashlight is equipped with 4 power indication lights to help users identify remaining power at any time. The stages of remaining power are as follows:

100%~75% ●●●● 75% ~50% ●●● 50%~25% ●● 25%~10% ●

When the power falls below 10%, one of the four indication lights (3.0V ~ 2.8V) will flash continuously for 3 times, indicating imminent power outage, the flashlight will become dimmer or unadjustable. At time of this, batteries should be replaced or recharged immediately.

Special Note

This intrinsically safe led torch comes with power shortage indication function. When the battery level is low, the lamp will flash 5 times, the strong light mode will be automatically switched to the working light mode, prolonging the lighting duration and reminding the user to charge in time.

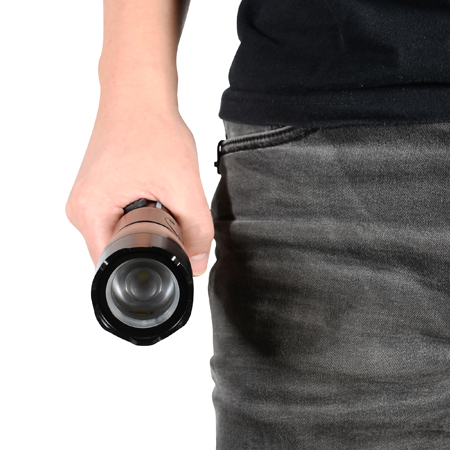

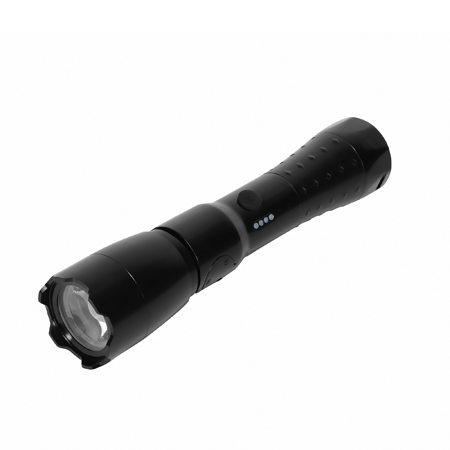

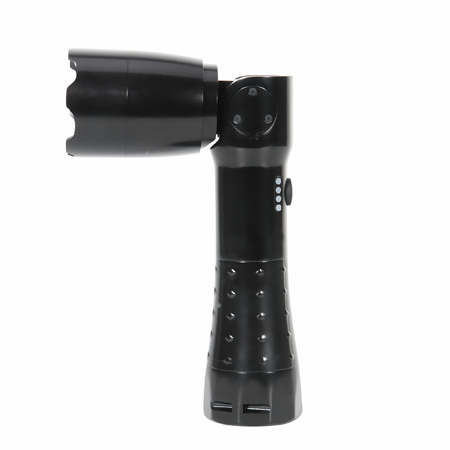

Explosion Proof LED Flashlight

Item NO.: CES-EX-FL-7633A

 Features:

• Security & Reliability: Type of protection - intrinsic safety: Exib IICT4 Gb, suitable for zone1, zone 2 locations.
• Superb Energy Efficiency: Adopting high level output LED light source，average lamp longevity 50000 hours.
• Intelligent Battery Protection: Li battery: High energy lithium-ion battery, has excellent charge/discharge performance, safe and environmentally friendly, low self-discharge rate. It also has the functions of overcharge, over discharge and short circuit protection.
• Waterproofing and fall resistance: It is made of light alloy, which is resistant to strong collision, impact, high and low temperature, and can be used in harsh environment and climate conditions.
• Power display: the explosion proof flash light is equipped with power display device, which can display the remaining power and charging status of the lamp in real time.
• Light weight and strong durability: The retractable lamp head can achieve the focusing and spreading of light. It can perform 90 ° rotation. It can either be handheld or attached to a support via magnetism.

Operation Instructionsfor FL-7633A Explosion proof LED Flashlight:

1. Each short press of the switch button, the brightness of the flashlight will cycle in the following sequence "working mode - strong light mode - flashing mode - off".
2. Both ends of the battery are internal positive and external negative. The flashlight placed in any direction can be used normally.
3. The the explosion proof flashlight is equipped with 4 power indication lights to help users identify remaining power at any time. The stages of remaining power are as follows:

100%~75% ●●●● 75% ~50% ●●● 50%~25% ●● 25%~10% ●

When the power falls below 10%, one of the four indication lights will flash continuously for 3 times, indicating imminent power outage, the explosion proof flashlight will become dimmer or unadjustable. At time of this, batteries should be replaced or recharged immediately.

4. Both ends of the battery are internal positive and external negative. The lamps placed in any direction can be used normally.
The charger has charging protection function. When starting charging, the blue indication light of the charger will perform breathe flashing, indicating that it's charging normally; Upon finishing charging, the blue indication light will stay on, indicating that the battery has been fully charged and the charging process has been completed.

Special Note:

When the FL-7633A Explosion proof LED Flashlight is unused for more than 3 months, battery maintenance will be required. To do this, first discharge the battery completely, then recharge it to its full capacity.

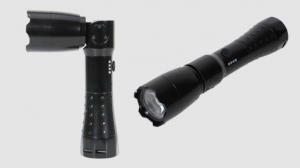

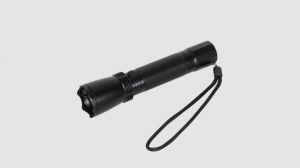

Explosion Proof LED Flash Light

Item NO.: CES-EX-FL-7623A

Features:

• Security & Reliability： Type of protection - intrinsic safety: Ex ib IICT4 Gb, suitable for zone1, zone 2 locations area.
• Superb Energy Efficiency： LED light source adopting world famous brand, high lumen efficiency, high CRI, low energy consumption, extra-long service life, maintenance free results in no further operation costs.
• Economically & Environmentally Friendly: Dual protection high-energy memoryless lithium battery has the advantages of large capacity, long service life, high number of rechargeable times, low self-discharge rate, economically and environmentally friendly, and can prevent instances of overcharge, over discharge and short circuit.
• Intelligent control: There are three working modes: strong light, working light and stroboscopic. The switch is controlled by intelligent chip. It has the functions of low-power warning and automatic low-power protection. The strong and weak light can be converted at will; The intelligent charger has over charge, short circuit protection and charging display device, which can extend the service life of lamps and lanterns.
• Power level detection: Humanized four stage power indication (through 4 mini light grids) and low voltage warning function design, which enables power level detection at any time; when the power is insufficient, the last light bead will flash to prompt charging
• Waterproofing and fall resistance: The casing is made of imported high hardness alloy material to ensure that the product can withstand strong collision and impact. Multiple waterproof structures and excellent waterproof performance, it can be used in various harsh environments.
• Light weight and strong durability: Small size, light weight, structurally sound design, aesthetically pleasing. It can be handheld, strapped on, hung and so on, to meet various work demands

Operation Instructions for CES-EX-FL-7623A Explsion Proof LED Flash Light

1. Each short press of the switch button, the brightness of the flashlight will cycle in the following sequence "working mode - strong light mode - off"; under any of these modes, 3 ~ 5 seconds of long press on the button will change the lamp into the flashing mode.
2. Both ends of the battery are internal positive and external negative. The lamps placed in any direction can be used normally.
3. The FL-7623A flashlight is equipped with 4 power indication lights to help users identify remaining power at any time. The stages of remaining power are as follows:

100%~75% ●●●● 75% ~50% ●●● 50%~25% ●● 25%~10% ●

When the power falls below 10%, one of the four indication lights (3.0V ~ 2.8V) will flash continuously for 3 times, indicating imminent power outage, the flashlight will become dimmer or unadjustable. At time of this, batteries should be replaced or recharged immediately.

Special Note

FL7623A explosion proof flash light comes with power shortage indication function. When the battery level is low, the lamp will flash 5 times, the strong light mode will be automatically switched to the working light mode, prolonging the lighting duration and reminding the user to charge in time.

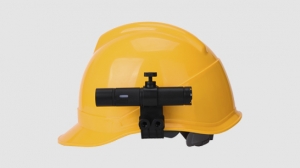

Rechargeable Explosion Proof LED Head Torch

Item NO.: CES-EX-FL-7302A

• Security & Reliability： This product has passed the explosion-proof certification from national authority, has excellent explosion-proof performance, and can be used safely and reliably in various flammable and explosive locations
• Superb Energy Efficiency： Adopting high level output LED light source，long service life, average lamp longevity 100000 hours.
• Economically & Environmentally Friendly: High energy lithium ion battery, great charging and discharging ability, high number of rechargeable times, economically & environmentally Friendly, low self discharge rate.
• Dual protection: The battery adopts dual IC and dual MOS protection boards with overcharge, over discharge and Short circuit protection function.
• Power level detection: Humanized four stage power indication (through 4 mini light grids) and low voltage warning function design, which enables power level detection at any time; when the power is insufficient, the last light bead will flash to prompt charging.
• Stylish Looks: Small size, light weight, especially suitable for wearing on the helmet as a headlamp.
• Waterproofing and fall resistance: The casing is made of light alloy to ensure that the product can withstand strong collision and impact, high and low temperature, and is dustproof and anti-corrosion. It is suitable for use in extreme environments and climate conditions.
• Light and durable: Small volume, light weight, exquisite structure, light and beautiful; It can be carried by hand, strap, hanging and other ways to meet various work needs.
• Signal indication: The tail is equipped with signal indication function, it is visible within 30m.

Operation Instructions for FL-7302A Explosion Proof Head Torch

1. Each short press of the switch button, the brightness of the flashlight will cycle in the following sequence "working mode - strong light mode - flashing mode - off".
2. The FL-7302A LED explosion proof head torch is equipped with 4 power indication lights to help users identify remaining power at any time. The stages of remaining power are as follows:

100%~75% ●●●● 75% ~50% ●●● 50%~25% ●● 25%~10% ●

When the power falls below 10%, one of the four indication lights will flash continuously for 3 times (3.0V ~ 2.8V), indicating imminent power outage, which is to say the strong light working mode can last for about another 15 minutes, whereas the working light mode can last for about another 30 minutes. At this point, batteries should be replaced or recharged immediately.

Special Note

When the LED explosion proof head torch unused for more than 3 months, battery maintenance will be required. To do this, first discharge the battery completely, then recharge it to its full capacity.

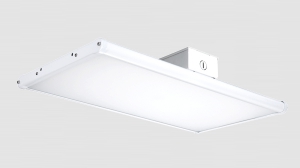

Linear LED High Bay Light CES-LL2

Power:100/120/150/162/200/265/322W

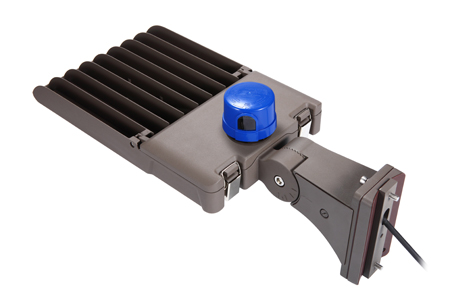

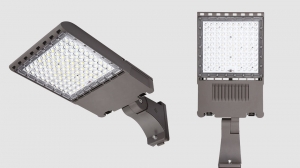

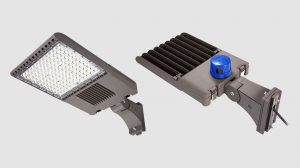

LED Shoebox Light / LED Area Light

Power:60W/80W/100W/120W/150W/200W/240W/300W

Item NO.: CES-SL4

• Applications

  LED Shoebox/Area Light series can be widely used in Parking lot , Urban roads, Industrial areas, Residential areas, Sidewalks, Schools, Gardens and etc.

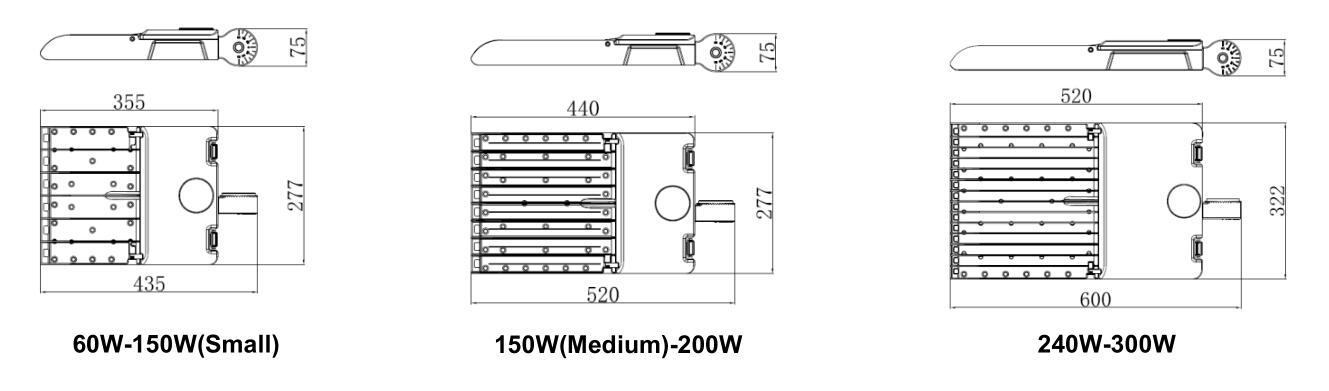

• Dimension:
  CES-SL3 series Area for light provide 3 basic dimension. The small size for max 150W, the medium size for max 200W, the large size for max 300W. There are 5 installation brackets for different application, such as round/square pole, wall mounting, and can adjust the beam angle accordingly.

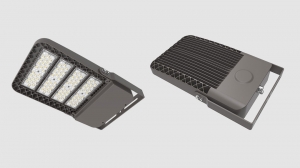

LED Shoebox Light / LED Area Light

Power:60W/80W/100W/120W/150W/200W/240W/300W

Item NO.: CES-SL3

• Applications

  CESP LED Shoebox/ LED Street Light series can be widely used in Parking lot , Urban roads, Industrial areas, Residential areas, Sidewalks, Schools, Gardens and etc.

• Dimension:
  CES-SL3 series Area for light provide 3 basic dimension. The small size for max 150W, the medium size for max 200W, the large size for max 300W. There are 5 installation brackets for different application, such as round/square pole, wall mounting, and can adjust the beam angle accordingly.

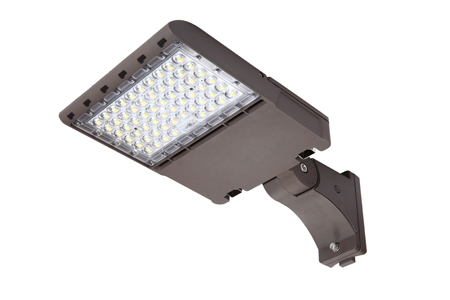

LED Shoebox Light / LED Area Light

Power:60W/80W/100W/120W/150W/200W/240W/300W/330W/400W/600W/660W

Item NO.: CES-SL2

• Applications

  LED Shoebox/Area Light series can be widely used in Parking lot , Urban roads, Industrial areas, Residential areas, Sidewalks, Schools, Gardens and etc.

• Dimension:
  Shell materials: Aluminum & PC.
  Finish: Dark Bronze/White

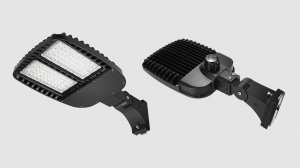

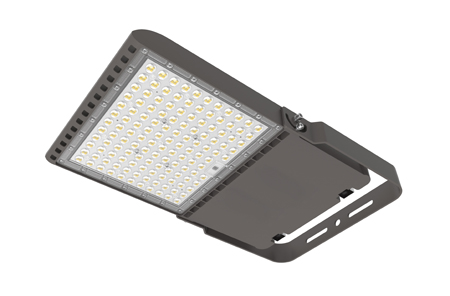

LED Shoebox Light / LED Area Light

Power:60W/100W/150W/200W/240W/300W/330W/400W/600W/660W

Item NO.: CES-SL1

• Applications

  CESP LED Shoebox/Area Light series can be widely used in Parking lot , Urban roads, Industrial areas, Residential areas, Sidewalks, Schools, Gardens and etc.
