Tuesday, 14 December 2021 06:07

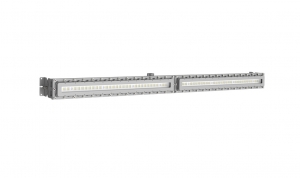

4ft Class 1 Division 2 LED Linear Fixtures - 30W 36W 40W 50W
4ft Class 1 Division 2 Hazardous Location LED Linear Light - 30W 36W 40W 50W - Ceiling Mount
Applications
Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
Warning：
- SUITABLE FOR WET LOCATIONS;
- THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING __55__°C (_131 °F);
- MIN 90°C (194°F) SUPPLY CONDUCTORS;
- NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
- CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;
- THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
- “CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.
Features
- Luminous flux: 3900LM / 4680LM / 5200LM / 6500LM
- -40°C to +50°C ambient operating temperature
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: NPT 3/4”-14 ;
- Housing –Aluminum alloy (ADC12 and 6063)
- Lens –tempered glass
- Dimension: 1289*97*109mm
Parameters
- Power: 30W / 36W / 40W / 50W
- Input voltage: AC100-240/277V, 50/60Hz
- Power factor: 0.97
- Light efficacy: 120 - 140lm/W
- CCT: 3000K/4000K/5000K/5700K/6500K
- LEDs: 3030 Chip (6V)
- Driver: High Efficiency LED Driver
- Warranty: 5 Years
Certificate & Standard
Have certified CES-EX-LN-02N fixtures with the NEC and CEC standards for hazardous location and environments
- Class I, Division 2, Groups A, B, C and D;
- T-Class: T6
- Wet Location
Certificate No：E475887
US: UL 844; UL 1598
Canada: CSA C22.2 No. 137; CSA C22.2 No. 250.0
Mounting
Versatile mounting options:
- Ceiling mount
- Wall Mount
- Mounting Angle：0°to ±90°;
Tagged under
Tuesday, 14 December 2021 05:56

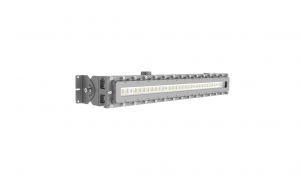

2ft Class 1 Division 2 LED Linear Fixtures - 20W 30W 36W
2ft Hazardous Location Class 1 Division 2 LED Linear Light - 20W 30W 36W - Ceiling Mount
Applications
Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
Warning：
- SUITABLE FOR WET LOCATIONS;
- THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING __55__°C (_131 °F);
- MIN 90°C (194°F) SUPPLY CONDUCTORS;
- NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
- CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;
- THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
- “CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.
Features
- Luminous flux: 2600LM / 3900LM / 4680LM
- -40°C to +50°C ambient operating temperature
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: NPT 3/4”-14 ;
- Housing –Aluminum alloy (ADC12 and 6063)
- Lens –tempered glass
- Dimension: 666*97*109mm
Parameters
- Power:20W/30W/36W
- Input voltage: AC100-240/277V, 50/60Hz
- Power factor: 0.97
- Light efficacy: 120 - 140lm/W
- CCT: 3000K/4000K/5000K/5700K/6500K
- LEDs: 3030 Chip (6V)
- Driver: High Efficiency LED Driver
- Warranty: 5 Years
Certificate & Standard
Have certified CES-EX-LN-02N fixtures with the NEC and CEC standards for hazardous location and environments
- Class I, Division 2, Groups A, B, C and D;
- T-Class: T6
- Wet Location
Certificate No：E47588
US: UL 844; UL 1598
Canada: CSA C22.2 No. 137; CSA C22.2 No. 250.0
Mounting
Versatile mounting options:
- Ceiling mount
- Wall Mount
- Mounting Angle：0°to ±90°;
Tagged under
Tuesday, 14 December 2021 05:49
Hazardous Location Class 1 Division 2 LED Linear Light - 80W 100W 120W 150W
Hazardous Location LED Linear Light - Class 1 Division 2 - 80W 100W 120W 150W
Applications
Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
When installing models CES-EX-LN-02-150, CES-EX-LN-02-120, CES-EX-LN-02-100, CES-EX-LN-02-80 in ignitable dusts, fibers or flyings, do not allow the lamp cover to be installed upwards.
Warning：
CUL for Hazloc:
- SUITABLE FOR WET LOCATIONS;
- THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING 50°C;
- FOR SUPPLY CONNECTION, USE WIRES RATED FOR AT LEAST90°C;
- NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
- CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;
- THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
- “CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.
Features
- Luminous flux: 10400LM / 13000LM / 15600LM / 19500LM
- -40°C to +50°C Ambient operating temperature
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: NPT 3/4”-14 ;
- Housing –Aluminum alloy (ADC12 and 6063)
- Lens –tempered glass
Parameters
- Power:80W / 100W / 120W / 150W
- Input voltage: AC100-240/277V, 50/60Hz
- Power factor: 0.97
- Light efficacy: 120 - 140lm/W
- CCT: 3000K/4000K/5000K/5700K/6500K
- LEDs: 3030 (6V)
- LED Driver: Meanwell HLG series
- Dimension: 564 mmx202mmx112mm
- Weight: 10.6KG
Certificate & Standard
Have certified CES-EX-LN-02 fixtures with the NEC and CEC standards for hazardous location and environments
- Class I, Division 2, Groups A, B, C and D;
- Class II, Division 2, Groups F and G
- Class III
- T-Class: T *（T3C/T4A/T5）
- Wet Location
Certificate No：E475887
US: UL 844; UL 1598
Canada: CSA C22.2 No. 137; CSA C22.2 No. 250.0
Mounting
Versatile mounting options:
- Ceiling mount
- Drop mount
- Wall Mount
- Mounting Angle：0°to ±90°
Published in
Hazardous Locaiton LED Linear Light
Tagged under
Tuesday, 14 December 2021 03:47
Hazardous Location Class 1 Division 2 LED Linear Light - 40W 50W 60W
Hazardous Location LED Linear Light - Class 1 Division 2 - 40W 50W 60W
Applications
Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
Warning：
CUL for Hazloc:
- SUITABLE FOR WET LOCATIONS;
- THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING 50°C;
- FOR SUPPLY CONNECTION, USE WIRES RATED FOR AT LEAST90°C;
- NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
- CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;
- THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
- “CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.
Features
- Luminous flux: 5200LM / 6500LM / 7800LM
- -40°C to +50°C ambient operating temperature
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: NPT 3/4”-14 ;
- Housing –Aluminum alloy (ADC12 and 6063)
- Lens –tempered glass
Parameters
- Power:40W/50W/60W
- Input voltage: AC100-240/277V, 50/60Hz
- Power factor: 0.97
- Light efficacy: 120 - 140lm/W
- CCT: 3000K/4000K/5000K/5700K/6500K
- LEDs: 2835
- LED Driver: Meanwell HLG series
- Dimension: 596*126*114mm
- Weight: 7.5KG
Certificate & Standard
Have certified CES-EX-LN-02 fixtures with the NEC and CEC standards for hazardous location and environments
- Class I, Division 2, Groups A, B, C and D;
- Class II, Division 2, Groups F and G
- Class III
- T-Class: T *（T3C/T4A/T5）
- Wet Location
US: UL 844; UL 1598
Canada: CSA C22.2 No. 137; CSA C22.2 No. 250.0
Mounting
Versatile mounting options:
- Ceiling mount
- Drop mount
- Wall Mount
- Mounting Angle：0°to ±90°
Published in
Hazardous Locaiton LED Linear Light
Tagged under
Tuesday, 14 December 2021 03:42

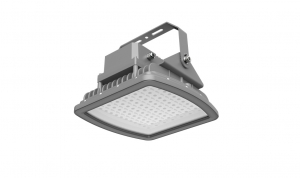

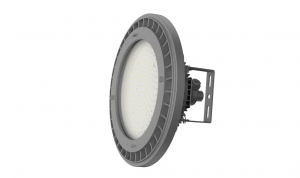

Explosion Proof LED High Bay Light - UL844 Listed Class 1 Division 2 - 100W to 200W
Applications
Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
Warning：
CUL for Hazloc:
- SUITABLE FOR WET LOCATIONS;
- THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING 50°C;
- FOR SUPPLY CONNECTION, USE WIRES RATED FOR AT LEAST90°C;
- NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
- CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;
- THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
- “CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.
Features
- Luminous flux: 12000lm / 14400lm / 18000lm / 21600lm / 24000lm
- -40°C to +50°C ambient operating temperature
- Wide optics for uniform illumination
- 5-Year warranty
- Entry Size:3/4’’-14 NPT
- Housing –Aluminum alloy (ADC12)
- Lens –tempered glass
- Dimension: 460*243mm
- Weight: 14.3KG
Parameters
- Power: 100W / 120W / 150W / 180W / 200W
- Input voltage: AC100-240/277V, 50/60Hz
- Power factor: 0.97
- Light efficacy: 120 - 140lm/W
- CCT: 3000K/4000K/5000K/5700K/6500K
- LEDs: 2835
- LED Driver: Meanwell HLG series
Certificate & Standard
Have certified CES-EX-GB02 fixtures with the NEC and CEC standards for hazardous location and environments
- Class I, Division 2, Groups A, B, C and D
- Class II, Division 2, Groups F and G
- Class III
- T-Class: T *（T3C/T4/T4A/T5）
- Damp and wet locations
- Certificate No：E475887
- US: UL 844; UL 1598; UL1598A Marine
- Canada: CSA C22.2 No. 137; CSA C22.2 No. 250.0;
Mounting
Versatile mounting options:
- Ceiling mount
- Wall Mount
- Mounting Angle：0°to ±90°
- Note: When installing in ignitable dusts, fibers or flyings, do not allow the lamp cover to be installed upwards.
Published in
Hazardous Locaiton LED High Bay
Tagged under
Tuesday, 14 December 2021 03:39

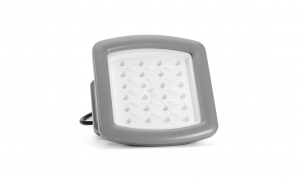

Explosion Proof LED High Bay Light - UL844 Listed Class 1 Division 2 - 60W 80W
Explosion Proof LED High Bay Light - Class 1 Division 2 - 60W 80W
Applications
Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
Warning：
CUL for Hazloc:
- SUITABLE FOR WET LOCATIONS;
- THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING 50°C;
- FOR SUPPLY CONNECTION, USE WIRES RATED FOR AT LEAST90°C;
- NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
- CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;
- THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
- “CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.
Features
- Luminous flux: 7800lm / 10400lm
- -40°C to +50°C ambient operating temperature
- Wide optics for uniform illumination
- 5-year warranty
- Entry Size:3/4’’-14 NPT
- Housing –Aluminum alloy (ADC12)
- Lens –tempered glass
- Dimension: 300*204mm
- Weight: 7KG
Parameters
- Power: 60W / 80W
- Input voltage: AC100-240/277V, 50/60Hz
- Power factor: 0.97
- Light efficacy: 120 - 140lm/W
- CCT: 3000K/4000K/5000K/5700K/6500K
- LEDs: 2835
- LED Driver: Meanwell HLG series
Certificate & Standard
Have certified CES-EX-GB02 fixtures with the NEC and CEC standards for hazardous location and environments
- Class I, Division 2, Groups A, B, C and D
- Class II, Division 2, Groups F and G
- Class III
- T-Class: T *（T4/T4A/T5/T6）
- Damp and wet locations
- Certificate No：E475887
- US: UL 844; UL 1598; UL1598A Marine
- Canada: CSA C22.2 No. 137; CSA C22.2 No. 250.0;
Mounting
Versatile mounting options:
- Ceiling mount
- Pole mount
- Wall Mount
- Mounting Angle：0°to ±90°;
Published in
Hazardous Locaiton LED High Bay
Tagged under
Tuesday, 14 December 2021 03:13

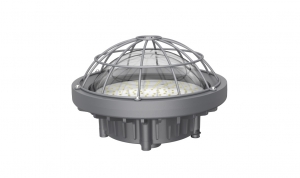

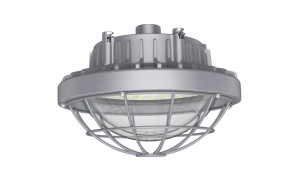

Explosion Proof LED High Bay Light - UL844 Listed Class 1 Division 2 - 30W 40W
Class 1 Division 2 Explosion Proof LED High Bay Light - 30W 40W
Applications
Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
Warning：
CUL for Hazloc:
- SUITABLE FOR WET LOCATIONS;
- THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING 50°C;
- FOR SUPPLY CONNECTION, USE WIRES RATED FOR AT LEAST90°C;
- NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
- CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;
- THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
- “CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.
Features
- Luminous flux: 3900lm / 5200lm
- -40°C to +50°C ambient operating temperature
- Wide optics for uniform illumination
- 5 warranty
- Entry Size:3/4’’-14 NPT
- Housing –Aluminum alloy (ADC12)
- Lens –tempered glass
- Dimension: 200*157mm
- Weight: 3KG
Parameters
- Power: 30W / 40W
- Input voltage: AC100-240/277V, 50/60Hz
- Power factor: 0.97
- Light efficacy: 120 - 140lm/W
- CCT: 3000K/4000K/5000K/5700K/6500K
- LEDs: 2835
- LED Driver: Meanwell HLG series
Certificate & Standard
Have certified CES-EX-GB02 fixtures with the NEC and CEC standards for hazardous location and environments
- Class I, Division 2, Groups A, B, C and D
- Class II, Division 2, Groups F and G
- Class III
- T-Class: T *（T3C/T4/T4A/T5/T6）
- Damp and wet locations
- Certificate No：E475887
- US: UL 844; UL 1598; UL1598A Marine
- Canada: CSA C22.2 No. 137; CSA C22.2 No. 250.0;
Mounting
Versatile mounting options:
- Ceiling mount
- Pole mount
- Wall Mount
- Mounting Angle：0°to ±90°;
Published in
Hazardous Locaiton LED High Bay
Tagged under
Monday, 13 December 2021 02:21

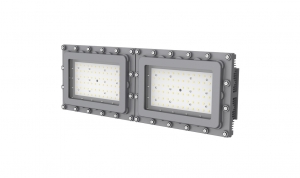

Hazardous Location LED Flood Light - Class 1 Division 2 - U-Bracket Mount - 120W/150W/185W
Applications:
• Wastewater treatment, oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases are present.
• Applies to hazardous locations of Class I, Division 2 with explosive gas atmosphere.
• Applies to marine locations, non-recessed outside type (salt water).
Warning：
CUL for Hazloc:
- SUITABLE FOR WET LOCATIONS;
- THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING 40°C;
- FOR SUPPLY CONNECTION, USE WIRES RATED FOR AT LEAST90°C;
- NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
- CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;
- THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
- “CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.
UL for marine locations:
- OUTSIDE TYPE or OUTSIDE TYPE (SALT WATER);
Features
- Industry-leading efficacy: up to 120 LPW
- -40°C to +55°C Ambient operating temperature
- Wide optics for uniform illumination
- Entry Size: NPT 3/4”-14 ;
- Housing –Aluminum alloy (ADC12 );
- Lens –tempered glass
- Beam angle: 108°, 120°
- Dimension: 400x400x169mm
- Weight: 10.5kg
Parameters
- Power: Max 185W
- Input voltage: AC100-240/277V, 50/60Hz
- Power factor: 0.97
- Light efficacy: 110 - 140lm/W
- CCT: 3000K/4000K/5000K/5700K/6500K
- LEDs: 3030
- LED Driver: Meanwell HLG series
Certificate & Standard
Have certified CES-J fixtures with the NEC and CEC standards for hazardous location and environments
- Class I, Division 2, Groups A, B, C and D
- T-Class: T5
- Damp and wet locations
- Certificate No：E475887
- US: UL 844; UL 1598A;
- Canada: CSA C22.2 No. 137; CSA C22.2 No. 250.0;
Mounting
Versatile mounting options:
- Ceiling mount
- Drop mount
- Pole mount
- Wall Mount
- Mounting Angle：0°to ±90°;
Published in
Hazardous Locaiton LED Flood Light
Tagged under
Monday, 13 December 2021 02:04
Hazardous Location LED Flood Light - Class 1 Division 2 - U-Bracket Mount - 60W/80W/100W
Applications:
• Wastewater treatment, oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases are present.
• Applies to hazardous locations of Class I, Division 2 with explosive gas atmosphere.
• Applies to marine locations, non-recessed outside type (salt water).
Warning：
CUL for Hazloc:
- SUITABLE FOR WET LOCATIONS;
- THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING 40°C;
- FOR SUPPLY CONNECTION, USE WIRES RATED FOR AT LEAST90°C;
- NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
- CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;
- THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
- “CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.
UL for marine locations:
- OUTSIDE TYPE or OUTSIDE TYPE (SALT WATER);
Features
- Industry-leading efficacy: up to 140lm/W
- -40°C to +55°C Ambient operating temperature
- Wide optics for uniform illumination
- Fixture warranty
- Entry Size: NPT 3/4”-14 ;
- Housing –Aluminum alloy (ADC12 );
- Lens –tempered glass
- Beam angle: 108°, 120°
- Dimension: 300x300x165mm
- Weight: 7.5kg
Parameters
- Power: 60W / 80W / 100W
- Input voltage: AC100-240/277V, 50/60Hz
- Power factor: 0.97
- Light efficacy: 110 - 140lm/W
- CCT: 3000K/4000K/5000K/5700K/6500K
- LEDs: 3030
- LED Driver: Meanwell HLG series
Certificate & Standard
Have certified CES-J fixtures with the NEC and CEC standards for hazardous location and environments
- Class I, Division 2, Groups A, B, C and D
- T-Class: T6
- Damp and wet locations
- Certificate No：E475887
- US: UL 844; UL 1598A;
- Canada: CSA C22.2 No. 137; CSA C22.2 No. 250.0;
Mounting
Versatile mounting options:
- Ceiling mount
- Drop mount
- Pole mount
- Wall Mount
- Mounting Angle：0°to ±90°;
Published in
Hazardous Locaiton LED Flood Light
Monday, 13 December 2021 01:46

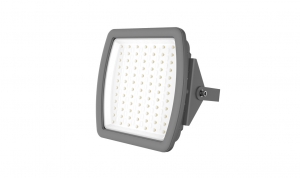

Hazardous Location LED Flood Light - Class 1 Division 2 - U-Bracket Mount - 20W/30W/40W
Applications:
• Wastewater treatment, oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases are present.
• Applies to hazardous locations of Class I, Division 2 with explosive gas atmosphere.
• Applies to marine locations, non-recessed outside type (salt water).
Warning：
CUL for Hazloc:
- SUITABLE FOR WET LOCATIONS;
- THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING 40°C;
- FOR SUPPLY CONNECTION, USE WIRES RATED FOR AT LEAST90°C;
- NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
- CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;
- THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
- “CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.
UL for marine locations:
- OUTSIDE TYPE or OUTSIDE TYPE (SALT WATER);
Features
- Industry-leading efficacy: up to 120 LPW
- -40°C to +55°C Ambient operating temperature
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: NPT 3/4”-14 ;
- Housing –Aluminum alloy (ADC12 );
- Lens –tempered glass
- Beam angle: 108°, 120°
- Dimension: 200x200x147mm
- Weight: 4kg
Parameters
- Power: Max 40W
- Input voltage: AC100-240/277V, 50/60Hz
- Power factor: 0.97
- Light efficacy: 110 - 140lm/W
- CCT: 3000K/4000K/5000K/5700K/6500K
- LEDs: 3030
- LED Driver: Meanwell HLG series
Certificate & Standard
Have certified CES-J fixtures with the NEC and CEC standards for hazardous location and environments
- Class I, Division 2, Groups A, B, C and D
- T-Class: T6
- Damp and wet locations
- Certificate No：E475887
- US: UL 844; UL 1598A;
- Canada: CSA C22.2 No. 137; CSA C22.2 No. 250.0;
Mounting
Versatile mounting options:
- Ceiling mount
- Drop mount
- Pole mount
- Wall Mount
- Mounting Angle：0°to ±90°;
Published in
Hazardous Locaiton LED Flood Light
Tagged under
