IECEx ATEX Certified Explosion proof LED Lights - Zone 1 Zone 2 Hazardous Area Lighting
CESP Zone 1 Zone 2 hazardous location LED lights are in accordance with International Protection Techniques (Equipment Protection Levels), including IEC/EN 60079-0 (General Requirement), IEC/EN 60079-1 (Flameproof Enclosure), IEC/EN 60079-7 (Increased Safety), IEC/EN 60079-11 (Intrinsic Safety), IEC/EN 60079-15 (Type of Protection), IEC/EN 60079-18, IEC/EN 60079-28, IEC/EN 60079-31. If you are not sure about the Classified of your lighting application environment, please contact our technical department for the solution.
For Zone 1 Zone 2, Zone 21 Zone 22 hazardous area led lighting, 20W - 200W, 130lm/W,aluminum alloy + 8mm tempered glass, multi-installation for different projects, such as light tower, canopy light, marine grade.
Flameproof enclosure, Ex db op is IIC T6 Gb， Zone 1 & Zone 21 with explosive gas atmosphere, Zone 21 and Zone22 with explosive dust atmosphere, 10mm temered glass, 7J impact resistance，up to 26000lm.
Flameproof enclosure, Ex db op is IIC T6 Gb, IP68 protection grade, tempered glass 10mm, withstand impacts up to 10J, 2 foot and 4 foot Length, 50Watt- 240Watt, 130lm/W light efficacy.

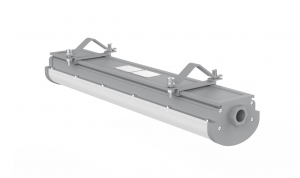

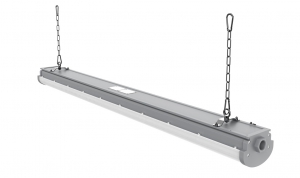

Zone 1 & Zone 21, 1ft, 2ft, 3ft, 4ft length can be selected, replace the traditional explosion-proof three-proof lamp, explosion-proof fluorescent tube, anti-corrosion, anti-glare, anti-drop, competitive price.
Flameproof LED hand lamp for Zone 1 & Zone 21 hazardous areas, 10mm tempered glass, pass the multi-angle drop test, 10W, 20W, 30W Power, can be connected to the cable, emergency power box.
The CES-EX-SF series explosion-proof ceiling lamp has a strong shell, with features such as impact resistance, vibration resistance, and corrosion resistance. It can be used in hazardous environments of Zone 1&21, Zone 2&22.
CES-EX-JX Series is your go-to solution for illuminating hazardous Zone 1 and Zone 21 areas. With ATEX approval, these Explosion-proof LED Flood Lights offer unbeatable safety standards.
Discover the pinnacle of safety and illumination with our CES-EX-GBX Series Explosion-proof LED High Bay Lights. Designed for hazardous Zone 1 and Zone 21 areas, these lights boast ATEX approval, ensuring the highest safety standards.
GB-02 explosion-proof lights are made of alloy aluminum and tempered glass, with shock resistance and anti-vibration performance. The luminaires have passed the ATEX IECEx standards test, from 30W to 80W for hazardous area lighting.
LN-02 explosion-proof lights obtained an IECEx ATEX certificate, it's safe for the Zone 1 and Zone 2 hazardous locations. The copper-free aluminum alloy body is powder-coated to increase durability and beautiful appearance, are able to withstand violent shaking and shock resistance.
an innovative line of LED hazardous area lighting products, specifically designed for use in potentially explosive atmospheres (Zone 1/21 & 2/22) within harsh industrial settings such as coal mines and oil & gas facilities.
Explosion-proof safety exit lamps are for personnel evacuation, and fire operations to provide lighting fire emergency lamps! It usually uses an external power supply, when the power automatically switches to the battery power state!
Friday, 21 January 2022 02:07

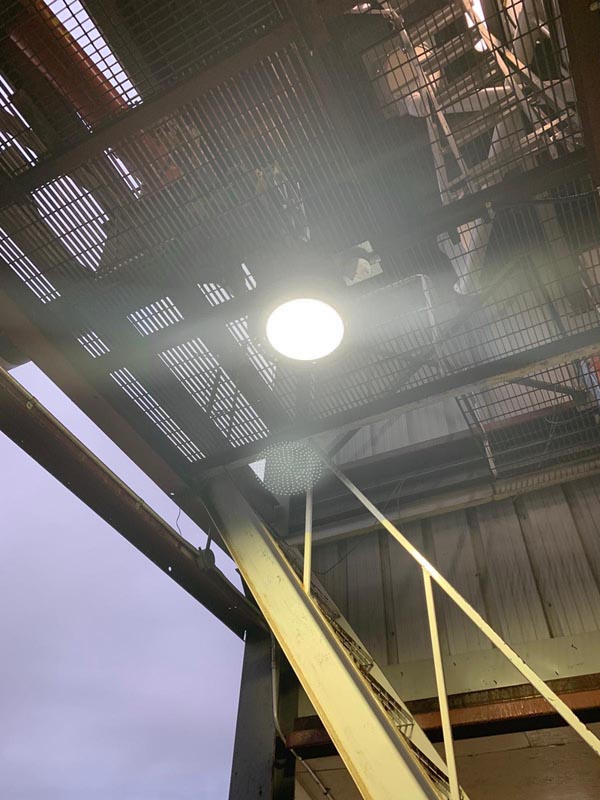

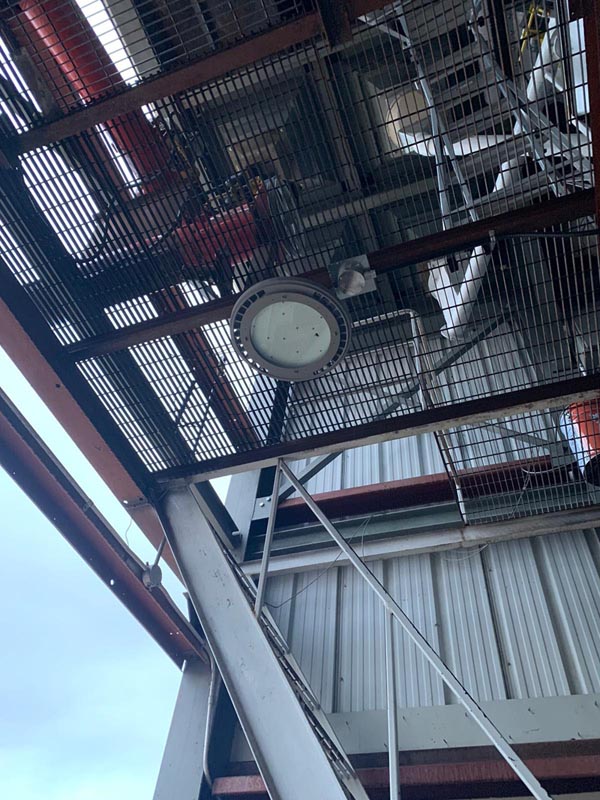

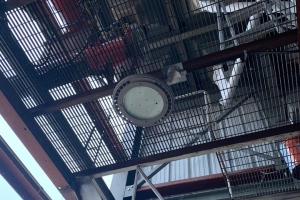

CESP Ex-proof High Bay Lighting Used for Canada
This ex-proof light fixture is CES-EX-GB-02 series, Class 1 Division 2, 150 Watt, inside a feed mill for life stock.
Published in
Our Cases
Tagged under
Thursday, 20 January 2022 06:50

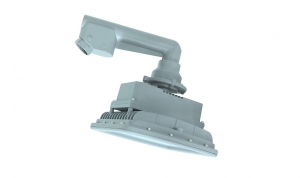

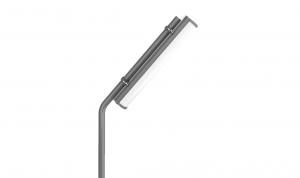

Explosion Proof LED Flood Light - Arm Mount
Explosion Proof LED Floodlight - All of Arm Mounting for Wall - 60W 80W 100W
Applications:
We meet your different needs with a variety of arm mounts, 45°, 90° and Wireless Contact Mounting.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.
ATEX: EN 60079-0: 2013 ; EN 60079-7: 2015 ; EN 60079-18: 2015 ; EN 60079-28: 2015 ; EN 60079-31：2014;
The new installation design use wireless Contact mounting(patent design) which make the installation and maintaining More conveniently.
Warning：
- “WARNING – DO NOT OPEN WHEN ENERGIZED”
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”
- “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”
- End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose.
- External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG.
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 95℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally.
Features
- Industry-leading efficacy: up to 130lm/W±5
- -40°C to +55°C Ambient operating temperature
- Mounting: Arm Mount
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: M25Χ1.5 or NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 )
- Lens – tempered glass
Parameters
- Power: 60W / 80W / 100W
- Input voltage: AC100-240/277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: up to 130lm/W
- CCT: 2700K - 6500K (Optional)
- LEDs: 3030
- LED Driver: Meanwell HLG series
- Beam angle: 120°
Certificate & Standard
Have certified CES-J fixtures with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- EX II 2G Ex eb mb op is IIC T4 Gb
- EX II 2D Ex op is tb IIIC T95°C Db
- IP66
- Certify No：IEP 19ATEX 0714
IECEx:
- Ex ec IIC T4 Gc
- IP66
- Certify No：IECEx UL 18.0046
Special order
- Special Orders- Requirements
Contact us for special requirements
Tel: +86-755-83509822
Fax: +86-755-83509868
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
Published in
Explosion proof LED Flood Light
Tagged under
Thursday, 20 January 2022 06:07

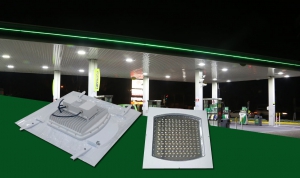

100W Explosion Proof LED Canopy Lights - Gas Station
Explosion Proof LED Canopy Lighting - Zone 1 Zone 2 Hazardous Area
Applications:
CES-J100 led explosion proof light can be used for the canopy lighting of gas stations, the light efficiency is up to 130lm/W. Untill now, the this lighting fixtures have been applied to gas stations in different countries around the world.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.
ATEX: EN 60079-0: 2013 ; EN 60079-7: 2015 ; EN 60079-18: 2015 ; EN 60079-28: 2015 ; EN 60079-31：2014;
Send the drawings and lighting requirements of your gas station, and we will provide Dialux lighting solution for you.

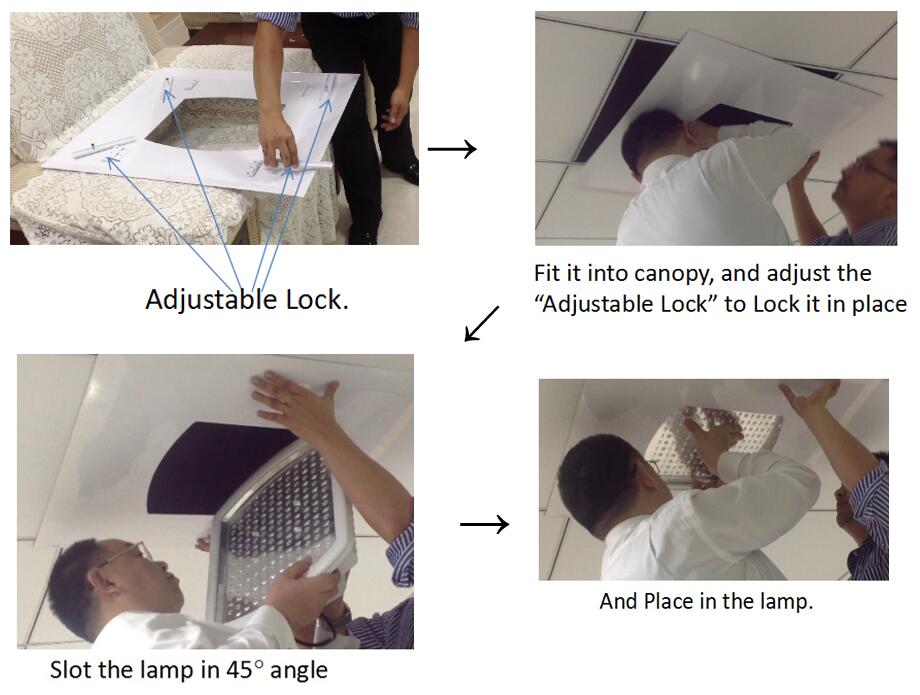

Extra Surface Mount Holder (600mm * 600mm) - Adjustable Lock Type
Warning：
- “WARNING – DO NOT OPEN WHEN ENERGIZED”
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”
- “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”
- End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose.
- External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG.
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 95℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally.
Features
- Industry-leading efficacy: up to 130lm/W±5
- -40°C to +55°C Ambient operating temperature
- Mounting: surface bracket (canopy)
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: M25Χ1.5 or NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 )
- Lens – tempered glass
Parameters
- Power: 100W
- Input voltage: AC100-240/277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: up to 130lm/W
- CCT: 2700K - 6500K (Optional)
- LEDs: 3030
- LED Driver: Meanwell HLG series
- Beam angle: 120°
Certificate & Standard
Have certified CES-J fixtures with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- EX II 2G Ex eb mb op is IIC T4 Gb
- EX II 2D Ex op is tb IIIC T95°C Db
- IP66
- Certify No：IEP 19ATEX 0714
IECEx:
- Ex ec IIC T4 Gc
- IP66
- Certify No：IECEx UL 18.0046
Special order
- Special Orders- Requirements
Contact us for special requirements
Tel: +86-755-83509822
Fax: +86-755-83509868
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
Published in
Explosion proof LED Flood Light
Tagged under
Wednesday, 19 January 2022 09:54

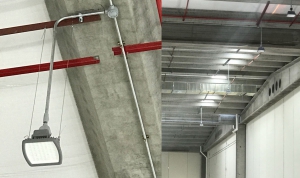

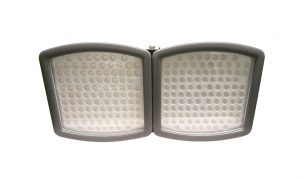

100W Explosion Proof LED Flood Lights - Drop Mounting
Portable Explosion Proof LED Lighting - Zone 1 Zone 21 Hazardous Area
Applications:
Using a tri-stand, CES-J explosion proof light is fixed and used as a mobile work light, which can be directly plugged in wherever you go, or powered by an emergency battery. Also, you can adjust the height of the stand to meet different lighting requirement.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.
ATEX: EN 60079-0: 2013 ; EN 60079-7: 2015 ; EN 60079-18: 2015 ; EN 60079-28: 2015 ; EN 60079-31：2014;
Warning：
- “WARNING – DO NOT OPEN WHEN ENERGIZED”
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”
- “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”
- End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose.
- External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG.
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 95℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally.
Features
- Industry-leading efficacy: up to 130lm/W±5
- -40°C to +55°C Ambient operating temperature
- Amounting: U-bracket
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: M25Χ1.5 or NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 )
- Lens – tempered glass
- Height adjustable
Parameters
- Power: 80W / 160W
- Input voltage: AC100-240/277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 9600lm / 19200lm
- CCT: 2700K - 6500K (Optional)
- LEDs: 3030
- LED Driver: Meanwell HLG series
- Beam angle: 120°
Certificate & Standard
Have certified CES-J fixtures with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- EX II 2G Ex eb mb op is IIC T4 Gb
- EX II 2D Ex op is tb IIIC T95°C Db
- IP66
- Certify No：IEP 19ATEX 0714
IECEx:
- Ex ec IIC T4 Gc
- IP66
- Certify No：IECEx UL 18.0046
Special order
- Special Orders- Requirements
Contact us for special requirements
Tel: +86-755-83509822
Fax: +86-755-83509868
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
Published in
Explosion proof LED Flood Light
Tagged under
Wednesday, 19 January 2022 09:34
80W Explosion Proof LED Floodlight - Ceiling Mounting
80W Explosion Proof LED Flood light - ATEX IECEx Zone 1 Zone 21
Applications:
• Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.
ATEX: EN 60079-0: 2013 ; EN 60079-7: 2015 ; EN 60079-18: 2015 ; EN 60079-28: 2015 ; EN 60079-31：2014;
Warning：
- “WARNING – DO NOT OPEN WHEN ENERGIZED”
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”
- “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”
- End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose.
- External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG.
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 95℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally.
Features
- Industry-leading efficacy: up to 130lm/W±5
- -40°C to +55°C Ambient operating temperature
- Amounting: U-bracket
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: M25Χ1.5
- Housing –Aluminum alloy (ADC12 )
- Lens – tempered glass
- Mount: ceiling mounting
Parameters
- Power: 80W
- Input voltage: AC100-240/277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 9600lm
- CCT: 2700K - 6500K (Optional)
- LEDs: 3030
- LED Driver: Meanwell HLG series
- Beam angle: 90°
Certificate & Standard
Have certified CES-J fixtures with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- EX II 2G Ex eb mb op is IIC T4 Gb
- EX II 2D Ex op is tb IIIC T95°C Db
- IP66
- Certify No：IEP 19ATEX 0714
IECEx:
- Ex ec IIC T4 Gc
- IP66
- Certify No：IECEx UL 18.0046
Special order
- Special Orders- Requirements
Contact us for special requirements
Tel: +86-755-83509822
Fax: +86-755-83509868
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
Published in
Explosion proof LED Flood Light
Tagged under
Wednesday, 19 January 2022 09:01

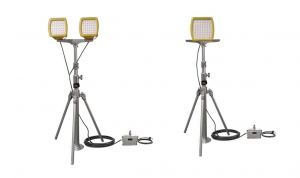

Portable Explosion Proof Lighting - Height Adjustable
Portable Explosion Proof LED Lighting - Zone 1 Zone 21 Hazardous Area
Applications:
Using a tri-stand, CES-J explosion proof light is fixed and used as a mobile work light, which can be directly plugged in wherever you go, or powered by an emergency battery. Also, you can adjust the height of the stand to meet different lighting requirement.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.
ATEX: EN 60079-0: 2013 ; EN 60079-7: 2015 ; EN 60079-18: 2015 ; EN 60079-28: 2015 ; EN 60079-31：2014;
Warning：
- “WARNING – DO NOT OPEN WHEN ENERGIZED”
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”
- “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”
- End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose.
- External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG.
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 95℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally.
Features
- Industry-leading efficacy: up to 130lm/W±5
- -40°C to +55°C Ambient operating temperature
- Amounting: U-bracket
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: M25Χ1.5 or NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 )
- Lens – tempered glass
- Height adjustable
Parameters
- Power: 80W / 160W
- Input voltage: AC100-240/277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 9600lm / 19200lm
- CCT: 2700K - 6500K (Optional)
- LEDs: 3030
- LED Driver: Meanwell HLG series
- Beam angle: 120°
Certificate & Standard
Have certified CES-J fixtures with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- EX II 2G Ex eb mb op is IIC T4 Gb
- EX II 2D Ex op is tb IIIC T95°C Db
- IP66
- Certify No：IEP 19ATEX 0714
IECEx:
- Ex ec IIC T4 Gc
- IP66
- Certify No：IECEx UL 18.0046
Special order
- Special Orders- Requirements
Contact us for special requirements
Tel: +86-755-83509822
Fax: +86-755-83509868
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
Published in
Explosion proof LED Flood Light
Tagged under
Wednesday, 19 January 2022 08:48

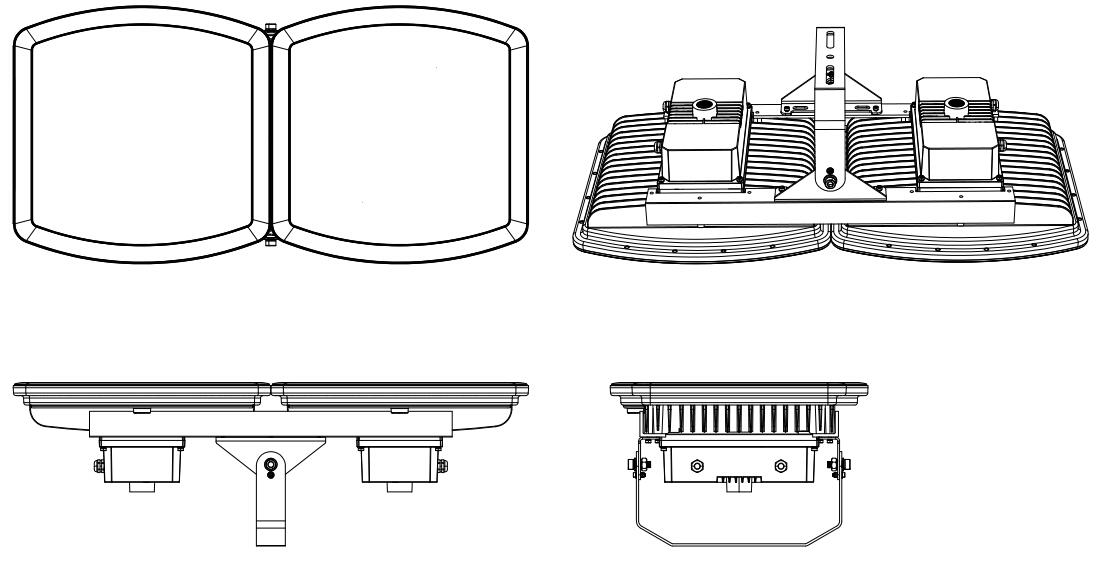

400W LED Explosion Proof High Power Lights - Zone 1 Zone 21
400W High Power Explosion Proof LED Flood Light - Zone 1 Zone 21 Hazardous Area
Applications:
• Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.
ATEX: EN 60079-0: 2013 ; EN 60079-7: 2015 ; EN 60079-18: 2015 ; EN 60079-28: 2015 ; EN 60079-31：2014;
Warning：
- “WARNING – DO NOT OPEN WHEN ENERGIZED”
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”
- “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”
- End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose.
- External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG.
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 95℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally.
Features
- Industry-leading efficacy: up to 130lm/W±5
- -40°C to +55°C Ambient operating temperature
- Amounting: U-bracket
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: M25Χ1.5 or NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 )
- Lens – tempered glass
- Beam angle: 120°
Parameters
- Power:2*200W
- Input voltage: AC100-240/277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 52000lm
- CCT: 2700K - 6500K (Optional)
- LEDs: 3030
- LED Driver: Meanwell HLG series
- Dimension: 800mm x 800mm x 248mm
- Weight: 21KG
Certificate & Standard
Have certified CES-J fixtures with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- EX II 2G Ex eb mb op is IIC T4 Gb
- EX II 2D Ex op is tb IIIC T95°C Db
- IP66
- Certify No：IEP 19ATEX 0714
IECEx:
- Ex ec IIC T4 Gc
- IP66
- Certify No：IECEx UL 18.0046
Special order
- Special Orders- Requirements
Contact us for special requirements
Tel: +86-755-83509822
Fax: +86-755-83509868
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
Published in
Explosion proof LED Flood Light
Tagged under
Thursday, 06 January 2022 05:57
4ft 2*36W Ex-proof Fluorescent Light Replacement - Class 1 Division 2 - Pole Mount
4 Foot Explosion Proof Triproof Light Replacement - Class 1 Division 2 - Pole Mount
Applications:
- Wastewater treatment, oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting.
CUL for Hazloc:
- SUITABLE FOR WET LOCATIONS;
- THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING __55__ °C (_131 °F);
- MIN 90°C (194°F) SUPPLY CONDUCTORS;
- NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
- CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;
- THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
- “CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.
Features
- Industry-leading efficacy: up to 110 - 130lm/W
- -40°C to + 50°C Ambient operating temperature
- Mounting: Pendant Chain
- 5 years warranty
- Entry Size: NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 and 6063 )
- Lens – Polycarbonate (PC)
- Beam angle:120°
Parameters
- Power: 40W / 50W / 60W / 65W / 75W
- Input voltage: AC100-240/277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 4800LM / 6000LM / 7200LM / 7800LM / 9000LM
- CCT: 2700K - 6500K (Optional)
- LEDs: 3030 (6V)
- LED Driver: High Efficiency LED Driver
- Dimension: 1229 mm x 138.3mm x 98.1 mm
- Weight: 5.5KG
Certificate & Standard
Have certified CES-EX-LN-02P fixtures with the North American UL844 standards for hazardous location and environments.
NEC/CEC:
- Class I, Division 2, Groups A, B, C and D
- T-Class: T4A / T5
- Damp and wet locations
- Certify No：E475887
Standard:
- US: UL 844; UL 1598;
- Canada: CSA C22.2 No. 137; CSA C22.2 No. 250.0
Special order
- Special Orders- Requirements
Contact us for special requirements
Tel: +86-755-83509822
Fax: +86-755-83509868
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
Published in
Hazardous Locaiton Fluorescent Light Replacement
Tagged under
Thursday, 06 January 2022 05:57
2ft 2*18W Explosion Proof Fluorescent Lighting Replacement - Class 1 Division 2 - Pole Mount
2 Foot Explosion Proof Triproof Light Replacement - Class 1 Division 2 Hazardous Area - Pole Mount
Applications:
- Wastewater treatment, oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting.
CUL for Hazloc:
- SUITABLE FOR WET LOCATIONS;
- THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING __55__ °C (_131 °F);
- MIN 90°C (194°F) SUPPLY CONDUCTORS;
- NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
- CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;
- THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
- “CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.
Features
- Industry-leading efficacy: up to 110 - 130lm/W
- -40°C to + 50°C Ambient operating temperature
- Mounting: pole mount
- 5 years warranty
- Entry Size: NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 and 6063 )
- Lens – Polycarbonate (PC)
- Beam angle:120°
Parameters
- Power: 30W / 40W / 50W
- Input voltage: AC100-240/277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 2600LM / 4800LM / 6000LM
- CCT: 2700K - 6500K (Optional)
- LEDs: 3030 (6V)
- LED Driver: high Efficiency LED Driver
- Dimension: 629 mm x 125mm x 88.7 mm
- Weight: 3.0KG
Certificate & Standard
Have certified CES-EX-LN-02P fixtures with the North American UL844 standards for hazardous location and environments.
NEC/CEC:
- Class I, Division 2, Groups A, B, C and D
- T-Class: T4A / T5
- Damp and wet locations
- Certify No：E475887
Standard:
- US: UL 844; UL 1598;
- Canada: CSA C22.2 No. 137; CSA C22.2 No. 250.0
Special order
- Special Orders- Requirements
Contact us for special requirements
Tel: +86-755-83509822
Fax: +86-755-83509868
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
Published in
Hazardous Locaiton Fluorescent Light Replacement
Tagged under
Thursday, 06 January 2022 05:35
4 Foot Hazardous Location Linear Light - Class 1 Div 2 - Pendant Chain Mount
4 Foot Explosion Proof Fluorescent Light Replacement - Class 1 Division 2 - Pendant Chain Mount
Applications:
- Wastewater treatment, oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting.
CUL for Hazloc:
- SUITABLE FOR WET LOCATIONS;
- THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING __55__ °C (_131 °F);
- MIN 90°C (194°F) SUPPLY CONDUCTORS;
- NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
- CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;
- THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
- “CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.
Features
- Industry-leading efficacy: up to 110 - 130lm/W
- -40°C to + 50°C Ambient operating temperature
- Mounting: Pendant Chain
- 5 years warranty
- Entry Size: NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 and 6063 )
- Lens – Polycarbonate (PC)
- Beam angle:120°
Parameters
- Power: 40W / 50W / 60W / 65W / 75W
- Input voltage: AC100-240/277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 4800LM / 6000LM / 7200LM / 7800LM / 9000LM
- CCT: 2700K - 6500K (Optional)
- LEDs: 3030 (6V)
- LED Driver: High Efficiency LED Driver
- Dimension: 1229 mm x 138.3mm x 98.1 mm
- Weight: 5.5KG
Certificate & Standard
Have certified CES-EX-LN-02P fixtures with the North American UL844 standards for hazardous location and environments.
NEC/CEC:
- Class I, Division 2, Groups A, B, C and D
- T-Class: T4A / T5
- Damp and wet locations
- Certify No：E475887
Standard:
- US: UL 844; UL 1598;
- Canada: CSA C22.2 No. 137; CSA C22.2 No. 250.0
Special order
- Special Orders- Requirements
Contact us for special requirements
Tel: +86-755-83509822
Fax: +86-755-83509868
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
Published in
Hazardous Locaiton Fluorescent Light Replacement
Tagged under
