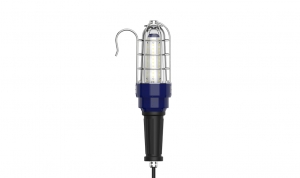

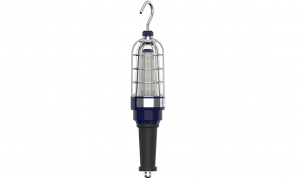

Flameproof LED hand lamp for Zone 1 & Zone 21 hazardous areas, 10mm tempered glass, pass the multi-angle drop test, 10W, 20W, 30W Power, can be connected to the cable, emergency power box.
The CES-EX-SF series explosion-proof ceiling lamp has a strong shell, with features such as impact resistance, vibration resistance, and corrosion resistance. It can be used in hazardous environments of Zone 1&21, Zone 2&22.
CES-EX-JX Series is your go-to solution for illuminating hazardous Zone 1 and Zone 21 areas. With ATEX approval, these Explosion-proof LED Flood Lights offer unbeatable safety standards.
Discover the pinnacle of safety and illumination with our CES-EX-GBX Series Explosion-proof LED High Bay Lights. Designed for hazardous Zone 1 and Zone 21 areas, these lights boast ATEX approval, ensuring the highest safety standards.
GB-02 explosion-proof lights are made of alloy aluminum and tempered glass, with shock resistance and anti-vibration performance. The luminaires have passed the ATEX IECEx standards test, from 30W to 80W for hazardous area lighting.
LN-02 explosion-proof lights obtained an IECEx ATEX certificate, it's safe for the Zone 1 and Zone 2 hazardous locations. The copper-free aluminum alloy body is powder-coated to increase durability and beautiful appearance, are able to withstand violent shaking and shock resistance.
an innovative line of LED hazardous area lighting products, specifically designed for use in potentially explosive atmospheres (Zone 1/21 & 2/22) within harsh industrial settings such as coal mines and oil & gas facilities.
Explosion-proof safety exit lamps are for personnel evacuation, and fire operations to provide lighting fire emergency lamps! It usually uses an external power supply, when the power automatically switches to the battery power state!
Wednesday, 24 November 2021 09:13

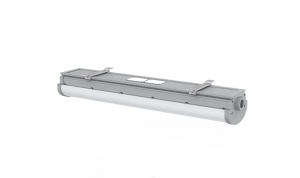

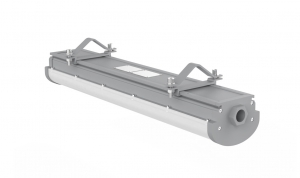

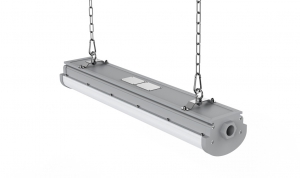

Explosion Proof LED Tube Replacement - 1ft 2ft - Zone1 - Pendant Chain Mount
1ft 2ft Explosion Proof LED Tube Replacement - Zone 1 Zone 2 - Pendant Chain Mount
Applications:
• Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.
ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-18-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-18-2014; IEC 60079-31-2013;
IECEx & ATEX :
- “CAUTION-USEFASTENER WITH YIELD STRESS ≥ 640 MPa”；
- “WARNING – DO NOT OPEN WHEN ENERGIZED”；
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
- “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”；
- " WARNING - DETAILED TEMPERATURE CLASS - SEE INSTRUCTIONS”；
- “THE FLAMPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED”;
- End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose；
- External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG；
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 130℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 83.6℃ and cable entry point is 69.4℃
Features
- Industry-leading efficacy: up to 140lm/W±5
- -40°C to +50°C Ambient operating temperature
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: M25Χ1.5 or NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 )
- Lens – PC Cover
- Beam angle: 120°
Parameters
- Power (1 Foot): 20W / 30W
- Power (2 Foot): 20W / 30W / 40W / 50W
- Input voltage: AC100-277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 2400LM - 6000LM
- CCT: 2700K - 6500K (Optional)
- LED Chip: 3030 LEDs
- LED Driver: High efficiency LED driver
- Dimension: 329 mm x 125mm x 88.7 mm / 629 mm x 125mm x 88.7 mm
- Weight: 2.5KG (1 Foot), 3KG (2 Foot)
Certificate & Standard
Have certified CES-EX-LN-02P fixtures with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- II 2G Ex eb mb IIC T5 Gb
- II 2D Ex tb IIIC T75°C Db
- IP66
- Certificate No：SEV 21 ATEX 0578 X
IECEx:
-
• Ex eb mb IIC T5 Gb
• Ex tb IIIC T75 °C Db
• IP66
• Certificate No：IECEx SEV 21.0038X
Amounting
Versatile mounting options:
- Pendant chain mount (See Installation manual of CES-EX-LN-02P )
Published in
Ex-proof Fluoresent Light Replacement
Tagged under
Wednesday, 24 November 2021 09:10

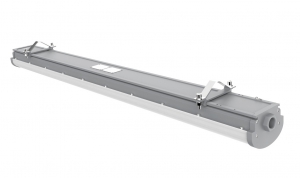

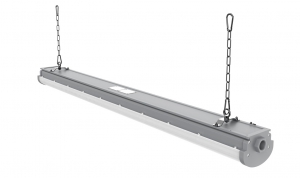

Explosion Proof LED Linear Light - 3ft 4ft - Zone 1 - Pendant Chain Mount
3ft 4ft Hazardous Area Linear Fluorescent Light - Zone 1 - Pendant Chain Mount
Applications:
• Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.
ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-18-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-18-2014; IEC 60079-31-2013;
IECEx & ATEX :
- “CAUTION-USEFASTENER WITH YIELD STRESS ≥ 640 MPa”；
- “WARNING – DO NOT OPEN WHEN ENERGIZED”；
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
- “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”；
- " WARNING - DETAILED TEMPERATURE CLASS - SEE INSTRUCTIONS”；
- “THE FLAMPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED”;
- End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose；
- External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG；
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 130℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 83.6℃ and cable entry point is 69.4℃
Features
- Industry-leading efficacy: up to 140lm/W±5
- -40°C to +50°C Ambient operating temperature
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: M25Χ1.5 or NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 )
- Lens – PC cover
- Beam angle: 120°
Parameters
- Power (3 Foot): 40W / 50W / 60W / 70W
- Power (4 Foot): 40W / 50W / 60W / 70W / 80W / 100W
- Input voltage: AC100-277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 4800LM - 12000LM
- CCT: 2700K - 6500K (Optional)
- LED Chip: 3030 LEDs
- LED Driver: High efficiency LED driver
- Dimension: 929 mm x 125mm x 88.7 mm / 1235mm x 155mm x 148mm
- Weight: 4.5KG (3 Foot), 5.5KG (4 Foot)
Certificate & Standard
Have certified CES-EX-LN-02P fixtures with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- II 2G Ex eb mb IIC T5 Gb
- II 2D Ex tb IIIC T75°C Db
- IP66
- Certificate No：SEV 21 ATEX 0578 X
IECEx:
-
• Ex eb mb IIC T5 Gb
• Ex tb IIIC T75 °C Db
• IP66
• Certificate No：IECEx SEV 21.0038X
Amounting
Versatile mounting options:
- Pendant chain mount (See Installation manual of CES-EX-LN-02P )
Published in
Ex-proof Fluoresent Light Replacement
Tagged under
Wednesday, 24 November 2021 08:31

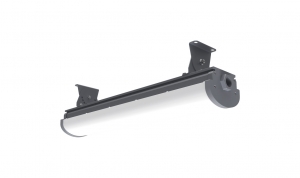

Explosion proof Fluorescent Lamp Replacement - 1ft 2ft - Zone 1 - Pole Mount
1ft 2ft Explosion Proof Fluorescent Lamp Replacement - Zone 1 Zone 2 - Pole Mount
Applications:
• Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.
ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-18-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-18-2014; IEC 60079-31-2013;
IECEx & ATEX :
- “CAUTION-USEFASTENER WITH YIELD STRESS ≥ 640 MPa”；
- “WARNING – DO NOT OPEN WHEN ENERGIZED”；
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
- “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”；
- " WARNING - DETAILED TEMPERATURE CLASS - SEE INSTRUCTIONS”；
- “THE FLAMPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED”;
- End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose；
- External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG；
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 130℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 83.6℃ and cable entry point is 69.4℃
Features
- Industry-leading efficacy: up to 140lm/W±5
- -40°C to +50°C Ambient operating temperature
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: M25Χ1.5 or NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 )
- Lens – PC Cover
- Beam angle: 120°
Parameters
- Power (1 Foot): 20W / 30W
- Power (2 Foot): 20W / 30W / 40W / 50W
- Input voltage: AC100-277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 2400LM - 6000LM
- CCT: 2700K - 6500K (Optional)
- LED Chip: 3030 LEDs
- LED Driver: High efficiency LED driver
- Dimension: 329 mm x 125mm x 88.7 mm / 629 mm x 125mm x 88.7 mm
- Weight: 2.5KG (1 Foot), 3KG (2 Foot)
Certificate & Standard
Have certified CES-EX-LN-02P fixtures with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- II 2G Ex eb mb IIC T5 Gb
- II 2D Ex tb IIIC T75°C Db
- IP66
- Certificate No：SEV 21 ATEX 0578 X
IECEx:
-
• Ex eb mb IIC T5 Gb
• Ex tb IIIC T75 °C Db
• IP66
• Certificate No：IECEx SEV 21.0038X
Amounting
Versatile mounting options:
- Pole mount (See Installation manual of CES-EX-LN-02P )
Published in
Ex-proof Fluoresent Light Replacement
Tagged under
Wednesday, 24 November 2021 08:21

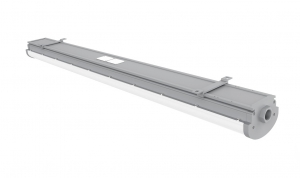

Explosion Proof Fluorescent Lighting Replacement - 3ft 4ft - Pole Mount
Explosion Proof Fluorescent Lighting Replacement - 3ft 4ft - Pole Mount
Applications:
• Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.
ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-18-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-18-2014; IEC 60079-31-2013;
IECEx & ATEX :
- “CAUTION-USEFASTENER WITH YIELD STRESS ≥ 640 MPa”；
- “WARNING – DO NOT OPEN WHEN ENERGIZED”；
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
- “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”；
- " WARNING - DETAILED TEMPERATURE CLASS - SEE INSTRUCTIONS”；
- “THE FLAMPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED”;
- End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose；
- External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG；
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 130℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 83.6℃ and cable entry point is 69.4℃
Features
- Industry-leading efficacy: up to 120lm/W±5
- -40°C to +50°C Ambient operating temperature
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: M25Χ1.5 or NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 )
- Lens – PC cover
- Beam angle: 120°
Parameters
- Power (1 Foot): 40W / 50W / 60W / 70W
- Power (2 Foot): 40W / 50W / 60W / 70W / 80W / 100W
- Input voltage: AC100-277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 4800LM - 12000LM
- CCT: 2700K - 6500K (Optional)
- LED Chip: 3030 LEDs
- LED Driver: High efficiency LED driver
- Dimension: 929 mm x 125mm x 88.7 mm / 1235mm x 155mm x 148mm
- Weight: 4.5KG (3 Foot), 5.5KG (4 Foot)
Certificate & Standard
Have certified CES-EX-LN-02P fixtures with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- II 2G Ex eb mb IIC T5 Gb
- II 2D Ex tb IIIC T75°C Db
- IP66
- Certificate No：SEV 21 ATEX 0578 X
IECEx:
-
• Ex eb mb IIC T5 Gb
• Ex tb IIIC T75 °C Db
• IP66
• Certificate No：IECEx SEV 21.0038X
Amounting
Versatile mounting options:
- Pole mount (See Installation manual of CES-EX-LN-02P )
Published in
Ex-proof Fluoresent Light Replacement
Tagged under
Wednesday, 24 November 2021 07:48

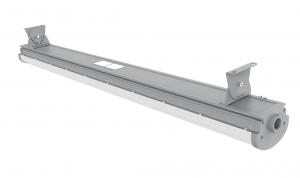

Explosion Proof LED Tube Light Replacement - 3ft 4ft - Zone 1 - Wall Mount
3ft 4ft Explosion Proof LED Tube Replacement - Wall Mount
Applications:
• Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.
ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-18-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-18-2014; IEC 60079-31-2013;
IECEx & ATEX :
- “CAUTION-USEFASTENER WITH YIELD STRESS ≥ 640 MPa”；
- “WARNING – DO NOT OPEN WHEN ENERGIZED”；
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
- “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”；
- " WARNING - DETAILED TEMPERATURE CLASS - SEE INSTRUCTIONS”；
- “THE FLAMPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED”;
- End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose；
- External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG；
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 130℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 83.6℃ and cable entry point is 69.4℃
Features
- Industry-leading efficacy: up to 140lm/W±5
- -40°C to +50°C Ambient operating temperature
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: M25Χ1.5 or NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 )
- Lens – PC cover
- Beam angle: 120°
Parameters
- Power (3 Foot): 40W / 50W / 60W / 70W
- Power (4 Foot): 40W / 50W / 60W / 70W / 80W / 100W
- Input voltage: AC100-277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 4800LM - 12000LM
- CCT: 2700K - 6500K (Optional)
- LED: 3030 LEDs
- LED Driver: High efficiency LED driver
- Dimension: 929 mm x 125mm x 88.7 mm / 1235mm x 155mm x 148mm
- Weight: 4.5KG (3 Foot), 5.5KG (4 Foot)
Certificate & Standard
Have certified CES-EX-LN-02P fixtures with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- II 2G Ex eb mb IIC T5 Gb
- II 2D Ex tb IIIC T75°C Db
- IP66
- Certificate No：SEV 21 ATEX 0578 X
IECEx:
-
• Ex eb mb IIC T5 Gb
• Ex tb IIIC T75 °C Db
• IP66
• Certificate No：IECEx SEV 21.0038X
Amounting
Versatile mounting options:
- Wall mount (See Installation manual of CES-EX-LN-02P )
- Mounting Angle：0°to ±90°;
Published in
Ex-proof Fluoresent Light Replacement
Tagged under
Wednesday, 24 November 2021 06:28
Hazardous Area Linear Fluorescent Light - 3ft 4ft - Zone 1 - Ceiling Mount
3ft 4ft Hazardous Area Linear Fluorescent Light - Zone 1 - Ceilling Mount
Applications:
• Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.
ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-18-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-18-2014; IEC 60079-31-2013;
IECEx & ATEX :
- “CAUTION-USEFASTENER WITH YIELD STRESS ≥ 640 MPa”；
- “WARNING – DO NOT OPEN WHEN ENERGIZED”；
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
- “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”；
- " WARNING - DETAILED TEMPERATURE CLASS - SEE INSTRUCTIONS”；
- “THE FLAMPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED”;
- End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose；
- External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG；
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 130℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 83.6℃ and cable entry point is 69.4℃
Features
- Industry-leading efficacy: up to 140lm/W±5
- -40°C to +50°C Ambient operating temperature
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: M25Χ1.5 or NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 )
- Lens – PC cover
- Beam angle: 120°
Parameters
- Power (1 Foot): 40W / 50W / 60W / 70W
- Power (2 Foot): 40W / 50W / 60W / 70W / 80W / 100W
- Input voltage: AC100-277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 4800LM - 12000LM
- CCT: 2700K - 6500K (Optional)
- LED Chip: 3030 LEDs
- LED Driver: High efficiency LED driver
- Dimension: 929 mm x 125mm x 88.7 mm / 1235mm x 155mm x 148mm
- Weight: 4.5KG (3 Foot), 5.5KG (4 Foot)
Certificate & Standard
Have certified CES-EX-LN-02P fixtures with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- II 2G Ex eb mb IIC T5 Gb
- II 2D Ex tb IIIC T75°C Db
- IP66
- Certificate No：SEV 21 ATEX 0578 X
IECEx:
-
• Ex eb mb IIC T5 Gb
• Ex tb IIIC T75 °C Db
• IP66
• Certificate No：IECEx SEV 21.0038X
Amounting
Versatile mounting options:
- Ceiling mount (See Installation manual of CES-EX-LN-02P )
Published in
Ex-proof Fluoresent Light Replacement
Tagged under
Wednesday, 24 November 2021 06:21
Ex-Proof Fluorescent Light Replacement - 1ft 2ft - Ceiling Mount
1ft 2ft Explosion Proof Fluorescent Light Replacement - Zone 1 Zone 21 - Ceiling Mount
Applications:
• Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.
ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-18-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-18-2014; IEC 60079-31-2013;
IECEx & ATEX :
- “CAUTION-USEFASTENER WITH YIELD STRESS ≥ 640 MPa”；
- “WARNING – DO NOT OPEN WHEN ENERGIZED”；
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
- “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”；
- " WARNING - DETAILED TEMPERATURE CLASS - SEE INSTRUCTIONS”；
- “THE FLAMPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED”;
- End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose；
- External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG；
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 130℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 83.6℃ and cable entry point is 69.4℃
Features
- Industry-leading efficacy: up to 140lm/W±5
- -40°C to +50°C Ambient operating temperature
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: M25Χ1.5 or NPT 3/4”-14
- Housing – Aluminum alloy (ADC12 )
- Lens – PC Cover
- Beam angle: 120°
Parameters
- Power (1 Foot): 20W / 30W
- Power (2 Foot): 20W / 30W / 40W / 50W
- Input voltage: AC100-277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 2400LM - 6000LM
- CCT: 2700K - 6500K (Optional)
- LED Chip: 3030 LEDs
- LED Driver: High efficiency LED driver
- Dimension: 329 mm x 125mm x 88.7 mm / 629 mm x 125mm x 88.7 mm
- Weight: 2.5KG (1 Foot), 3KG (2 Foot)
Certificate & Standard
Have certified CES-EX-LN-02P fixtures with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- II 2G Ex eb mb IIC T5 Gb
- II 2D Ex tb IIIC T75°C Db
- IP66
- Certificate No：SEV 21 ATEX 0578 X
IECEx:
-
• Ex eb mb IIC T5 Gb
• Ex tb IIIC T75 °C Db
• IP66
• Certificate No：IECEx SEV 21.0038X
Amounting
Versatile mounting options:
- Ceiling mount (See Installation manual of CES-EX-LN-02P )
Published in
Ex-proof Fluoresent Light Replacement
Tagged under
Wednesday, 24 November 2021 06:16
Ex Fluorescent Light Replacement - 1ft 2ft - Zone 1 - Wall Mount
1ft 2ft Explosion Proof Fluorescent Light Replacement - Wall Mount
Applications:
• Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.
ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-18-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-18-2014; IEC 60079-31-2013;
IECEx & ATEX :
- “CAUTION-USEFASTENER WITH YIELD STRESS ≥ 640 MPa”；
- “WARNING – DO NOT OPEN WHEN ENERGIZED”；
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
- “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”；
- " WARNING - DETAILED TEMPERATURE CLASS - SEE INSTRUCTIONS”；
- “THE FLAMPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED”;
- End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose；
- External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG；
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 130℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 83.6℃ and cable entry point is 69.4℃
Features
- Industry-leading efficacy: up to 140lm/W±5
- -40°C to + 50°C CAmbient operating temperature
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: M25Χ1.5 or NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 )
- Lens – PC Cover
- Beam angle: 120°
Parameters
- Power (1 Foot): 20W / 30W
- Power (2 Foot): 20W / 30W / 40W / 50W
- Input voltage: AC100-277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 2400LM - 6000LM
- CCT: 2700K - 6500K (Optional)
- LED: 3030 LEDs
- LED Driver: High efficiency LED driver
- Dimension: 329 mm x 125mm x 88.7 mm / 629 mm x 125mm x 88.7 mm
- Weight: 2.5KG (1 Foot), 3KG (2 Foot)
Certificate & Standard
Have certified CES-EX-LN-02P fixtures with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- II 2G Ex eb mb IIC T5 Gb
- II 2D Ex tb IIIC T75°C Db
- IP66
- Certificate No：SEV 21 ATEX 0578 X
IECEx:
-
• Ex eb mb IIC T5 Gb
• Ex tb IIIC T75 °C Db
• IP66
• Certificate No：IECEx SEV 21.0038X
Amounting
Versatile mounting options:
- Wall mount (See Installation manual of CES-EX-LN-02P )
- Mounting Angle：0°to ±90°;
Published in
Ex-proof Fluoresent Light Replacement
Tagged under
Wednesday, 24 November 2021 02:00
Zone 1 Explosion Proof LED Hand Lamp - 360 Beam Angle - Side Hook
Applications:
- The lights in this series are capable of offering portable illumination for hazardous locations and temporary projects, such as quick plant turnarounds, MRO projects, oil fields, marine sites and tank cleaning etc. Our Portable Electric Hand Lamps are designed for Zone 1, Zone 2, Zone 21, Zone22 environments.
ATEX: EN IEC 60079-0-2018; EN 60079-1-2014; EN 60079-7-2015;EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-1-2014; IEC 60079-7-2017; IEC 60079-31-2013;
IECEx & ATEX :
- “WARNING – DO NOT OPEN WHEN ENERGIZED”
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
- “WARNING – POTENTIAL ELECTROSTATIC CHARGING HAZARD - SEE INSTRUCTIONS”
- THE FLAMEPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED.
- End user shall use certified cable gland type of protection for final installation purpose.
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 80℃ for T6.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 60.1℃ and cable entry point is 52.0℃.
- For handle, there is “POTENTIAL ELECTROSTATIC CHARGING HAZARD”. When used in the explosive environment, please touch with an insulating object, wipe with a damp cloth.
Features
- Industry-leading efficacy: up to 100lm/W±5
- -40°C to +50°CCAmbient operating temperature
- Swivel hook for hanging and hands free operation
- Prevent drop damage
- 5 years warranty
- Housing –Aluminum alloy (ADC12 )
- Lens – tempered glass
- Beam angle:360°
Parameters
- Power: 10W / 20W / 30W
- Input voltage 1: AC100V-277V; Frequency: 50/60Hz;
- Input voltage 2: DC110V ;
- Input voltage 3: DC12V-24V;
- Lumen flux: 1000LM/2000LM/3000LM
- CCT: 3000K/4000K/6500K (Optional)
- LEDs: 3030
- LED Driver: High Efficiency LED Driver
- Entry Size: M20X1.5
- Dimension: Φ101.5 x 516.5 mm
- Weight: 2.4KG
Certificate & Standard
Have certified CES-EX-SC with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- II 2G Ex db eb IIC T6 Gb
- II 2D Ex tb IIIC T 80°C Db
- Certify No.：SEV 20 ATEX 0369 X
IECEx:
- Ex db eb IIC T6 Gb
- Ex tb IIIC T 80°C Db
- Certify No.：IECEx SEV 20.0003X
Published in
Explosion proof LED Hand Lamp
Tagged under
Tuesday, 23 November 2021 09:32
Zone 1 Explosion Proof LED Hand Lamp - 360 Beam Angle - Top hook
The lights in this series are capable of offering portable illumination for hazardous locations and temporary projects, such as quick plant turnarounds, MRO projects, oil fields, marine sites and tank cleaning etc. Our Portable Electric Hand Lamps are designed for Zone 1, Zone 2, Zone 21, Zone22 environments.
ATEX: EN IEC 60079-0-2018; EN 60079-1-2014; EN 60079-7-2015;EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-1-2014; IEC 60079-7-2017; IEC 60079-31-2013;
IECEx & ATEX :
- “WARNING – DO NOT OPEN WHEN ENERGIZED”
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
- “WARNING – POTENTIAL ELECTROSTATIC CHARGING HAZARD - SEE INSTRUCTIONS”
- THE FLAMEPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED.
- End user shall use certified cable gland type of protection for final installation purpose.
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 80℃ for T6.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 60.1℃ and cable entry point is 52.0℃.
- For handle, there is “POTENTIAL ELECTROSTATIC CHARGING HAZARD”. When used in the explosive environment, please touch with an insulating object, wipe with a damp cloth.
Features
- Industry-leading efficacy: up to 100lm/W±5
- -40°C to +50°CCAmbient operating temperature
- Swivel hook for hanging and hands free operation
- Prevent drop damage
- 5 years warranty
- Housing –Aluminum alloy (ADC12 )
- Lens – tempered glass
- Beam angle:360°
Parameters
- Power: 10W / 20W / 30W
- Input voltage 1: AC100V-277V; Frequency: 50/60Hz;
- Input voltage 2: DC110V ;
- Input voltage 3: DC12V-24V;
- Lumen flux: 1000LM/2000LM/3000LM
- CCT: 3000K, 4000K, 6500K (Optional)
- LEDs: 3030
- LED Driver: High Efficiency LED Driver
- Entry Size: M20X1.5
- Dimension: Φ101.5 x 516.5 mm
- Weight: 2.4KG
Certificate & Standard
Have certified CES-EX-SC with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- II 2G Ex db eb IIC T6 Gb
- II 2D Ex tb IIIC T 80°C Db
- Certify No.：SEV 20 ATEX 0369 X
IECEx:
- Ex db eb IIC T6 Gb
- Ex tb IIIC T 80°C Db
- Certify No.：IECEx SEV 20.0003X
Published in
Explosion proof LED Hand Lamp
Tagged under
